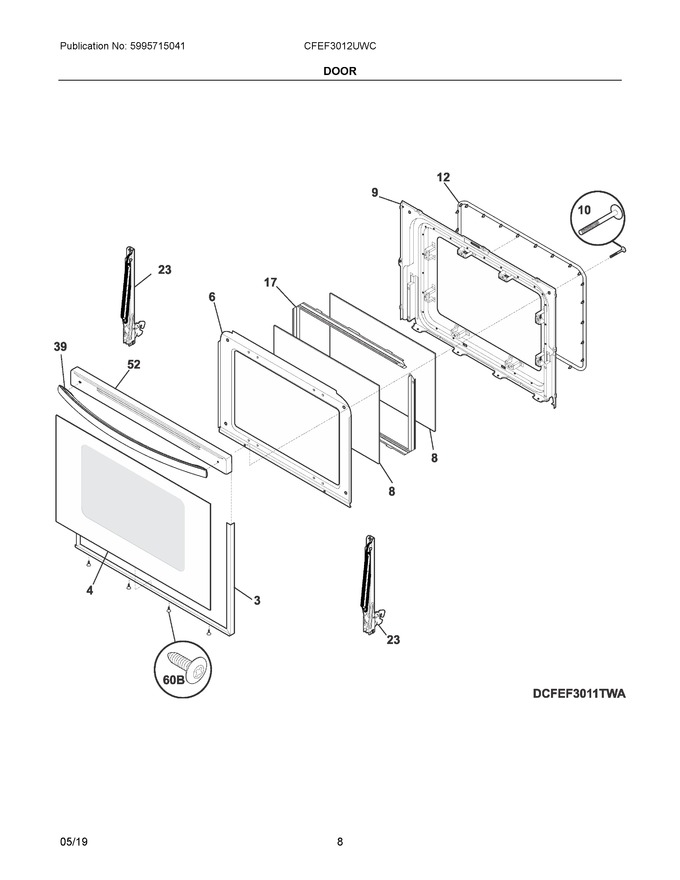

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5303935380 | Trim Kit-door, 3 Sided, White, W/tape |
|
$ 85.84 | |||||
| 4 | 316202818 | Glass, Oven Door, White, Outer (Replaces: 316202830) |
|
$ 275.54 | |||||
| 6 | 316222714 | Shield, Wool, Oven Door |
|
$ 57.91 | |||||
| 8 | 5304503232 | Glass, Oven Door, Inner |
|
$ 129.94 | |||||
| 9 | 316230635 | Liner, Oven Door |
|
$ 150.41 | |||||
| 10 | 316278700 | Screw, Wafer Head, 10-14 X 1 3/8, Handle Mtg |
|
Immediately | $ 30.55 | ||||
| 12 | 316239700 | Seal, Oven Door |
|
Immediately | $ 169.37 | ||||
| 17 | 5304520152 | Spacer, Door Glass |
|
$ 26.12 | |||||
| 23 | 316575924 | Hinge, Oven Door |
|
$ 71.66 | |||||
| 39 | 5304522047 | Handle, Door, White (Replaces: 5304507385) |
|
Immediately | $ 136.25 | ||||
| 52 | 316491200 | Cap, Door Trim, White |
|
Immediately | $ 133.14 | ||||
| 60B | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 30.55 | ||||
| NI | 316519700 | Screw, Cup Pt, 8-18 X 0.375, Chrome (Replaces: 316021108) |
|
$ 11.13 | |||||
| NI | 316483102 | Label, Anti-tip |
|
$ 3.95 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 30.55 | ||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 15.75 |
