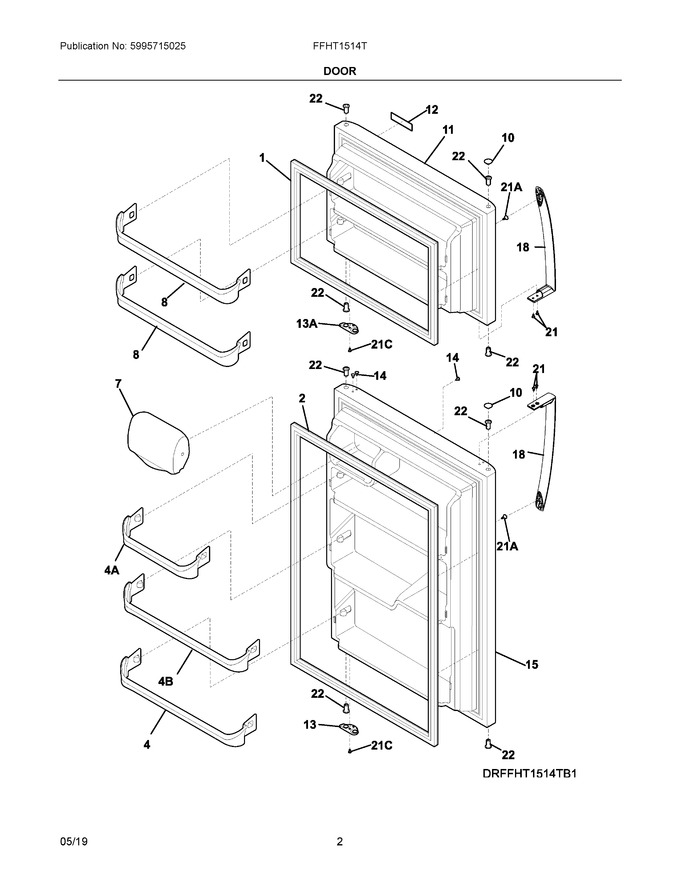

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242193201 | Gasket, Freezer Door, White, Magnetic |
|
Immediately | $ 216.64 | ||||
| 2 | 242193202 | Gasket, Refrig Door, White |
|
Immediately | $ 204.00 | ||||
| 4 | 240535101 | Rack-door |
|
Immediately | $ 31.74 | ||||
| 7 | 240337712 | Door-dairy |
|
Immediately | $ 40.45 | ||||
| 8 | 240535001 | Rack-door |
|
Immediately | $ 53.55 | ||||
| 10 | 240381301 | Plug-button, White, Hinge Brg Hole, (2) |
|
Immediately | $ 21.06 | ||||
| 11 | 807460010 | Freezer Door, Complete, White (Replaces: 807460007) |
|
$ 327.24 | |||||
| 12 | 5304511144 | Badge, Frigidaire, White |
|
Immediately | $ 5.06 | ||||
| 13 | 240312421 | Door Stop, White, Ref |
|
$ 16.85 | |||||
| 14 | 240494001 | Plug-button, White, Cab Liner Holes |
|
Immediately | $ 20.22 | ||||
| 15 | 807460108 | Refrigerator Door, Complete, White |
|
$ 311.10 | |||||
| 18 | 5303918823 | Handle-door, White, W/block & Screw (Replaces: 5304511147) |
|
Immediately | $ 58.14 | ||||
| 21 | 5304515677 | Screw, Truss Hd Quad, #10-16 X .500, Zinc (Replaces: 240383406) |
|
Immediately | $ 21.37 | ||||
| 22 | 5304507146 | Bearing-hinge, Natural, (8) |
|
Immediately | $ 8.43 | ||||
| 13A | 240312414 | Door Stop, White, Frzr |
|
$ 21.26 | |||||
| 21A | 240521303 | Screw, #10-16 X 1/2 |
|
Immediately | $ 33.55 | ||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| 4A | 240535301 | Rack-door, 12.03 |
|
Immediately | $ 45.69 | ||||
| 4B | 240535201 | Rack-door |
|
Immediately | $ 33.71 |
