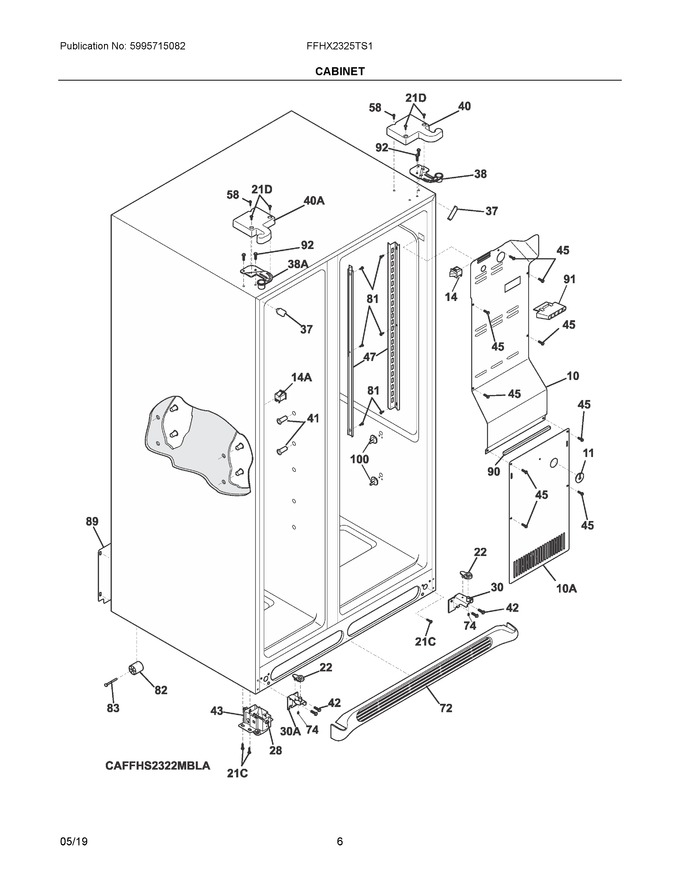

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 240435911 | Cover-air Duct |
|
$ 117.16 | |||||
| 11 | 5303208309 | Plug-hole, Factory Test |
|
$ 50.56 | |||||
| 14 | 240505801 | Switch, Light/lamp |
|
$ 74.03 | |||||
| 22 | 241917801 | Plate-door Closer |
|
$ 7.88 | |||||
| 28 | 5304499445 | Bolt-roller Adj, Hex Washer Head, 1/4-20 X 4.020, (2), Special (Replaces: 240335502) |
|
Immediately | $ 34.81 | ||||
| 30 | 241918001 | Bracket-lower Hinge, W/hinge Pin, Rh, And Screw |
|
$ 73.24 | |||||
| 37 | 5304519618 | Trim-cabinet Corner, Gray |
|
$ 13.48 | |||||
| 38 | 241761301 | Bracket-upper Hinge, Rh |
|
$ 73.61 | |||||
| 40 | 241946719 | Cover-upper Hinge, Gray, Rh |
|
$ 74.68 | |||||
| 41 | 241550801 | Grommet-shelf Mtg, 1.40" Long |
|
$ 70.78 | |||||
| 42 | 240578902 | Screw, Hex Head, 1/4-20 X 5/8 |
|
Immediately | $ 15.75 | ||||
| 43 | 5304499445 | Roller Assy, Front, (2) (Replaces: 240335006) |
|
Immediately | $ 34.81 | ||||
| 45 | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 5.06 | ||||
| 47 | 241513003 | Channel-shelf Mtg, Side, (2) |
|
- | |||||
| 58 | 241548003 | Screw, 10-32 X 3/8 |
|
$ 3.37 | |||||
| 72 | 240324420 | Grille/kickplate, Gray |
|
Immediately | $ 52.25 | ||||
| 74 | 218755402 | Screw-set, 10-32 X .500 In |
|
Immediately | $ 36.67 | ||||
| 81 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 15.75 | |||||
| 82 | 240335202 | Roller, Compressor Base, Rear |
|
$ 23.63 | |||||
| 83 | 5304455655 | Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin |
|
Immediately | $ 39.27 | ||||
| 89 | 5304521673 | Cover-access |
|
$ 66.36 | |||||
| 90 | 218249807 | Seal-coil Cover |
|
- | |||||
| 91 | 240380101 | Duct-ice Maker |
|
$ 83.42 | |||||
| 92 | 241710601 | Screw, Hex Washer Hd, 1/4 X 7/8, Hinge Mtg |
|
$ 14.96 | |||||
| 100 | 241993101 | Support-crisper Cvr |
|
Immediately | $ 6.24 | ||||
| 10A | 241719716 | Cover-evap Coil, Lower (Replaces: 241719710) |
|
- | |||||
| 14A | 241547902 | Switch-light/lamp, Frzr Door (Replaces: 241547901) |
|
Immediately | $ 25.83 | ||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| 21D | 218781101 | Screw, Pan Head, 8-18 X 0.625 |
|
$ 17.33 | |||||
| 30A | 241918004 | Bracket-lower Hinge, W/hinge Pin, Lh, And Screw |
|
$ 58.28 | |||||
| 38A | 241761302 | Bracket-upper Hinge, Lh |
|
$ 71.66 | |||||
| 40A | 241946720 | Cover-upper Hinge, Gray |
|
$ 71.09 | |||||
| NI | 240494001 | Plug-button, White, Cab Liner Holes |
|
Immediately | $ 20.22 | ||||
| NI | 240396802 | Clamp, Tube/wiring, Nylon, Black/natural |
|
- | |||||
| NIA | 241550701 | Grommet-shelf Mtg, .96" Long |
|
$ 20.22 | |||||
| NIA | 241993001 | Support-crisper Cvr |
|
Immediately | $ 21.37 |
