01 - Cover Sheet

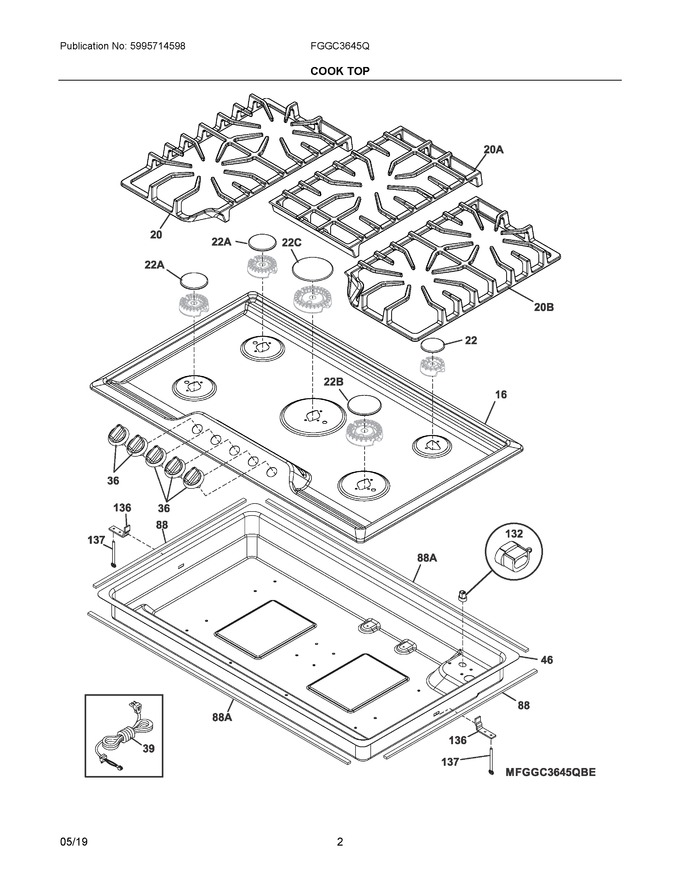

02 - Cook Top


03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	809218312		Main Top, Assembly, Black		Appelez-nous	-
20	5304499403		Grate, Burner, Black, Lh				$ 314.30
22	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 38.93
36	5304533000		Knob, Burner, Black   (Replaces: 5304499335)				$ 38.77
39	305574902		Power Cord, Electrical, Supply				$ 77.18
46	5304498877		Burner Box		Appelez-nous	-
88	5304521662		Gasket, Maintop, Foam Tape, Side				$ 19.10
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 10.11
136	318264301		Support, Box, (2)				$ 47.72
137	305452400		Screw, Lock Bracket, (2)			Immediately	$ 13.55
20A	5304499404		Grate, Burner, Black, Center				$ 310.93
20B	5304499405		Grate, Burner, Black, Rh				$ 325.26
22A	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 40.61
22B	5304508443		Cap, 14k Burner, Matte, Black   (Replaces: 316262004)			Immediately	$ 51.12
22C	5304508468		Cap, 17k Burner, Black   (Replaces: 316262104)				$ 54.94
88A	5304521663		Gasket, Maintop, Foam Tape, Front/rear				$ 22.71
NI	305338601		Screw, (2)				$ 4.73
NI	5304498878		Insulation, Cooktop		Appelez-nous	-
NIA	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
