SELECT A DIAGRAM
New Model Search:

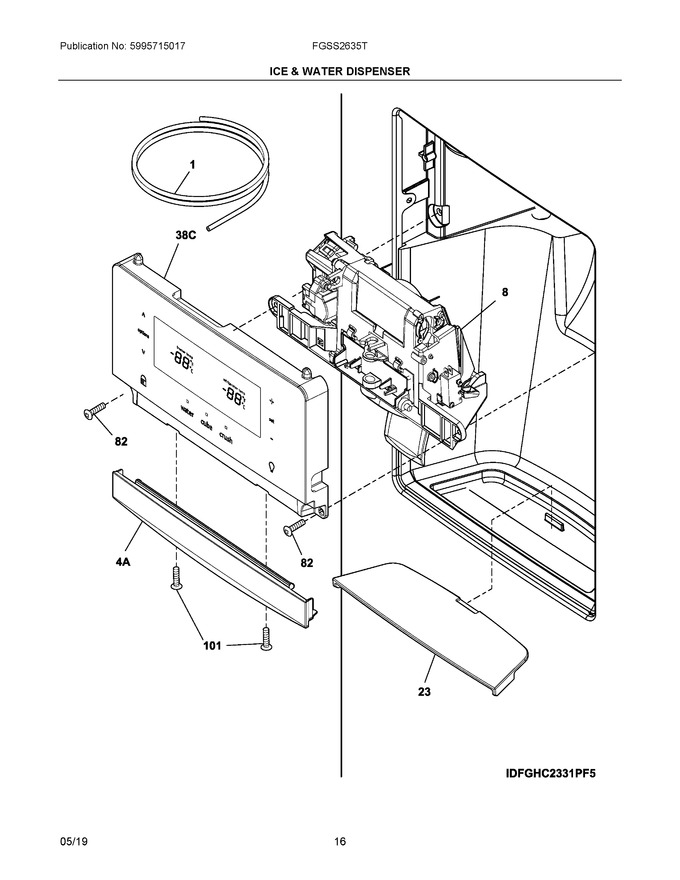

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976438 | Tube, Water, 62", Natural 62", Door, Btm Door To Dsp |
|
Immediately | $ 22.84 | ||||
| 8 | 242270207 | Module Assembly, Ice & Water, Complete |
|
$ 182.85 | |||||
| 23 | 242176503 | Sump, Dispenser, Grey |
|
$ 126.79 | |||||
| 82 | 241953902 | Screw, Quad Hilo, #8-18 X 0.25 (Replaces: 241953907) |
|
Immediately | $ 19.01 | ||||
| 101 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 19.01 | ||||
| 38C | 5304512624 | Control Assembly, User Interface, W/housing |
|
$ 339.58 | |||||
| 4A | 242194301 | Trim, Facade, Stainless |
|
$ 114.77 | |||||
| NI | 5303918744 | Kit, Dspnsr Heater, Dc |
|
$ 225.82 | |||||
| NIA | 218976439 | Tube-water Inlet, 5/16 - 32", Yellow, Valve To Door, Wtr Vlv To Door |
|
$ 21.26 |
