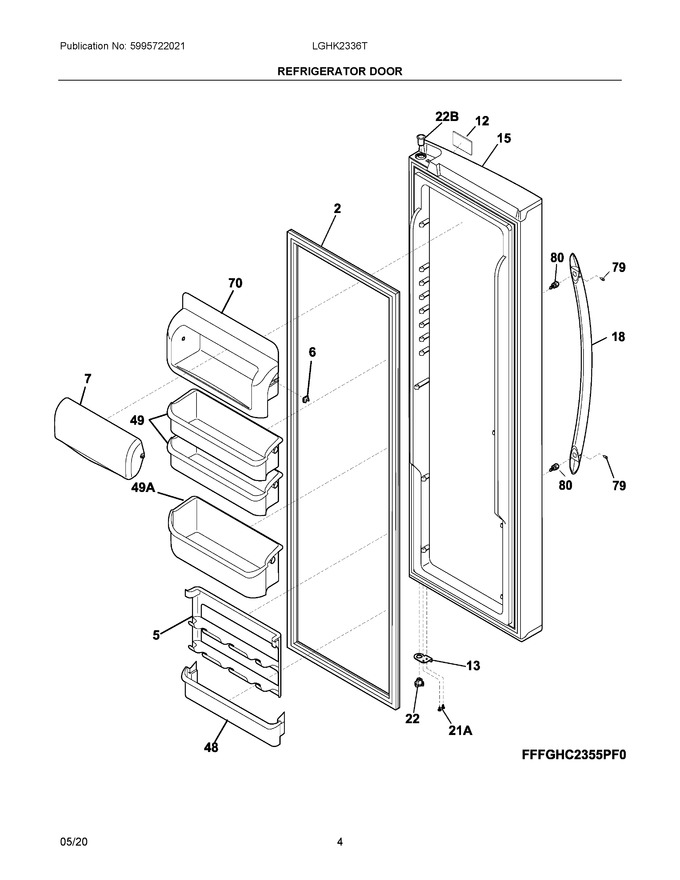

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241510207 | Gasket-refr Door, Black, Magnetic (Replaces: 241510203) |
|
Immediately | $ 107.93 | ||||
| 5 | 241516102 | Rack-can |
|
$ 101.54 | |||||
| 6 | 241515901 | Lug-dairy Compartment |
|
$ 47.19 | |||||
| 7 | 241515606 | Door-dairy (Replaces: 241515601) |
|
$ 45.51 | |||||
| 12 | 5304510904 | Nameplate, Black Stainless |
|
$ 60.67 | |||||
| 13 | 241990201 | Door Stop, Black, Ref |
|
$ 23.63 | |||||
| 15 | 807460168 | Door |
|
$ 567.63 | |||||
| 18 | 241930105 | Handle-door, Black Stainless |
|
$ 207.29 | |||||
| 22 | 241990301 | Bearing-hinge, Gray |
|
$ 7.88 | |||||
| 48 | 241511701 | Bin-door, Ref |
|
Immediately | $ 74.68 | ||||
| 49 | 241505301 | Bin-door, 2-liter |
|
Immediately | $ 84.89 | ||||
| 70 | 241515801 | Compartment-dairy, Removable |
|
$ 197.66 | |||||
| 79 | 218755405 | Screw-set, 10-32 X 0.375 (Replaces: 218755408) |
|
Immediately | $ 22.84 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 20.67 | ||||
| 21A | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 9.27 | |||||
| 22B | 241760404 | Bearing, Hinge, Top |
|
$ 14.18 | |||||
| 49A | 241505501 | Bin-door, Gallon |
|
Immediately | $ 110.03 | ||||
| NI | 241601002 | Wrench, Allen |
|
- | |||||
| NIA | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 15.75 |
