Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11451765 Assembly, Control Panel (stainless)   (Replaces: W11196782) Special Order $ 1,160.02

2 W11123146 Assembly, Speaker   (Replaces: W10568405) Special Order $ 80.93

3 W10668510 Housing Special Order $ 105.17

4 W10566973 Harness, Keypad (left To Center) Special Order $ 82.19

5 W10489172 Screw Special Order $ 11.98

6 W10524350 Harness, Keypad (right To Center) Special Order $ 78.21

7 W10575307 Jumper Harness, Power Supply In-Stock Immediately $ 173.84

8 W11197499 Skin, Control Panel (stainless) In-Stock Immediately $ 361.78

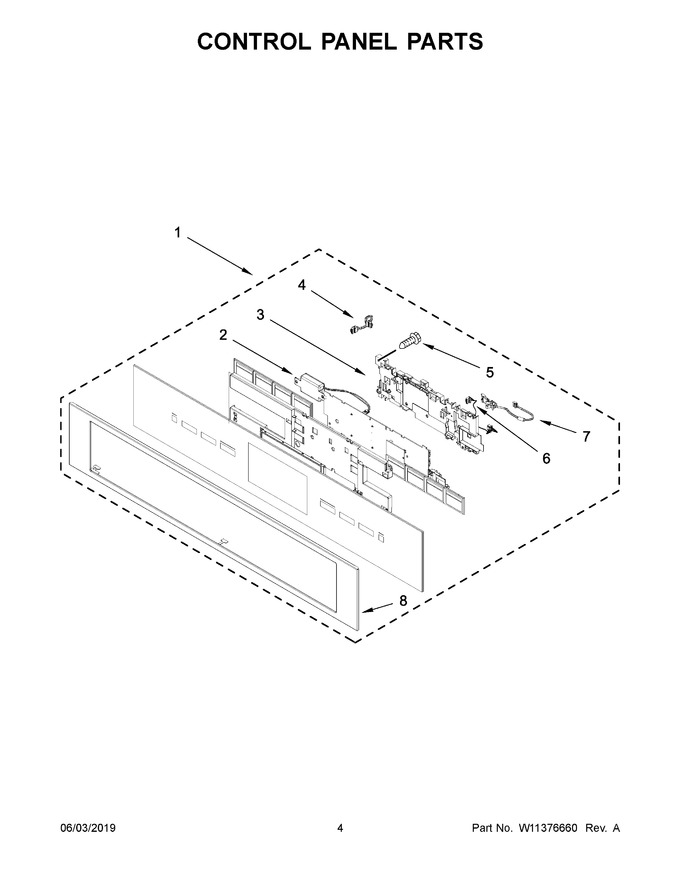

    View Diagram in Separate Window     Print Icon   Print Part List
