Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11296634 Use And Care Guide Appelez-nous -
2 N/P Cabinet (not A Servicable Part) Appelez-nous -
3 WP98165 Screw   (Replaces: 12990504) Special Order $ 8.57

4 WPW10498976 Valve, Inlet   (Replaces: W10498976) In-Stock Immediately $ 126.10

5 W10208592 Cover, Valve Appelez-nous -
6 WPW10141622 Brake, Roller   (Replaces: W10141622) In-Stock Immediately $ 8.24

7 WP67006642 Pin, Center Hinge   (Replaces: 10351006) Special Order $ 8.78

8 67006425 Screw   (Replaces: 12990511) In-Stock Immediately $ 7.30

9 WP8281196 Screw   (Replaces: 12992602) In-Stock Immediately $ 7.55

10 W11106366 Cover, Hinge (grey)   (Replaces: 12477601AP) Special Order $ 75.82

11 W11573362 Screw (stainless)   (Replaces: W10673840) Special Order $ 14.72

12 WP98165 Screw   (Replaces: 12990521) Special Order $ 8.57

13 12726003 Cover, Water Line Special Order $ 19.19

14 WP489349 Screw   (Replaces: 12992403) In-Stock Immediately $ 8.43

15 W11689473 Hinge, Center (grey)   (Replaces: 12607103AP) Special Order $ 69.79

16 WP12566606ED Hinge, Top   (Replaces: 12566606ED) In-Stock Immediately $ 47.13

17 WP12587703AP Cover, Corner (grey)   (Replaces: 12587703AP) Special Order $ 8.07

18 W11456069 Clamp, Tube   (Replaces: M0108107) In-Stock Immediately $ 22.40

19 W11820444 Assembly, Roller (left Hand)   (Replaces: W10515763) In-Stock Immediately $ 37.35

20 67006564 Screw   (Replaces: W10709365) In-Stock Immediately $ 8.15

21 W10210978 Cover, Unit Special Order $ 201.78

22 WPW10534165 Grille, Toe (grey)   (Replaces: W10534165) In-Stock Immediately $ 60.90

23 W10485986 Guide, Waterline In-Stock Immediately $ 12.95

24 W11817981 Assembly, Fill Tube (includes Tubing, Fill Tube Elbow, Tube Insert And Clamp)   (Replaces: W11046935) In-Stock Immediately $ 91.27

19A W11820445 Assembly, Roller (right Hand)   (Replaces: W10515762) In-Stock Immediately $ 37.35

1A W11306930 Energy Guide Appelez-nous -
1B W11297588 Tech Sheet Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

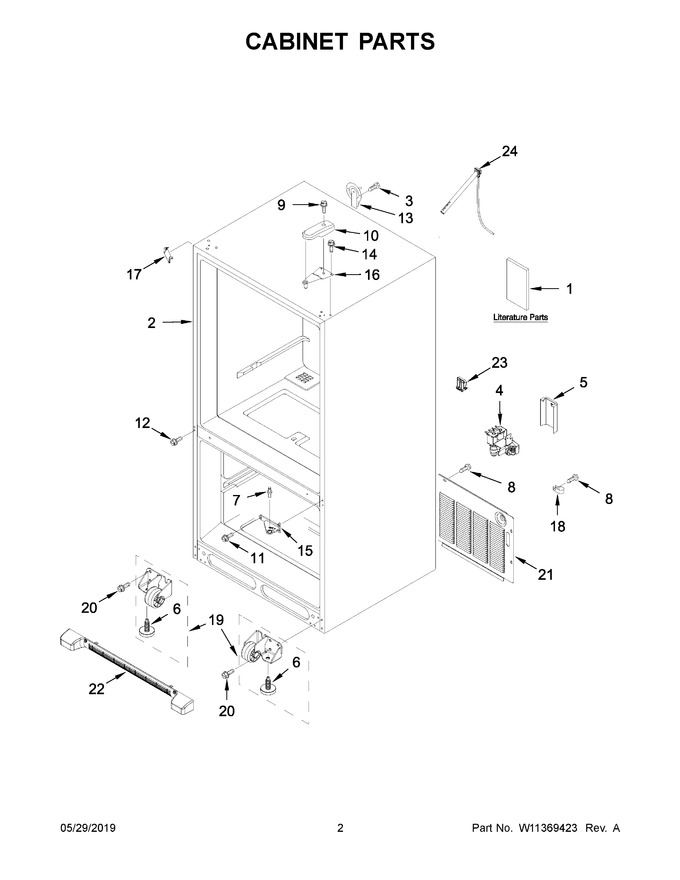

Diagram for MBF1958FEZ03
