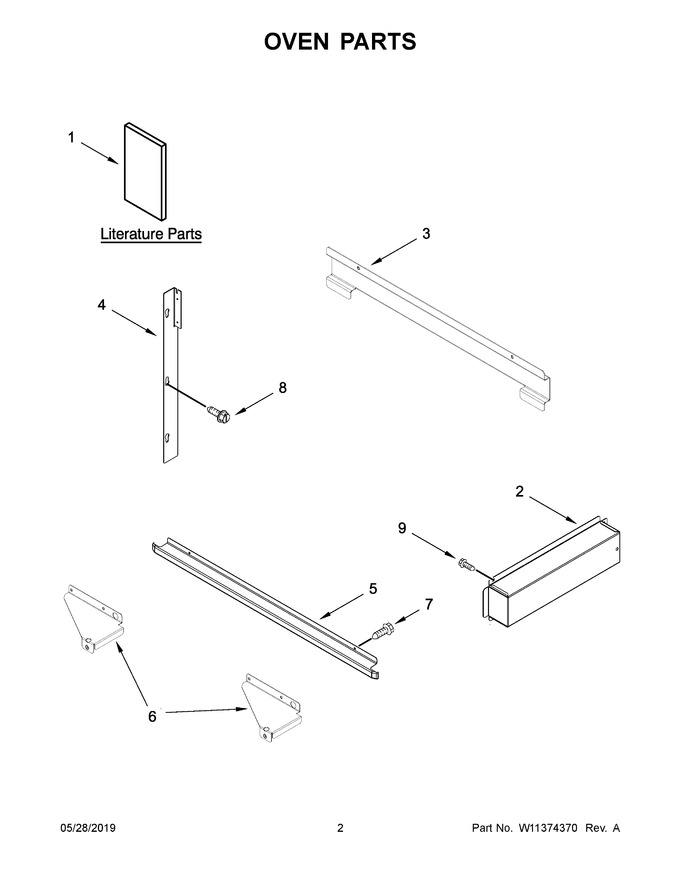

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11091153 | Instructions, Installation |
|
- | |||||
| 2 | W10239155 | Box, Conduit |
|
$ 103.20 | |||||
| 3 | W11673269 | Support, Microwave Module (Replaces: W10420960) |
|
Immediately | $ 69.92 | ||||
| 4 | W10416256 | Rail, Side (left) |
|
$ 51.61 | |||||
| 5 | W11359268 | Trim, Bottom (stainless) (Replaces: W10420958) |
|
$ 126.74 | |||||
| 6 | W10239156 | Bracket, Lower (left) |
|
$ 21.24 | |||||
| 7 | WP3400832 | Screw (black) (Replaces: 3400832) |
|
Immediately | $ 8.18 | ||||
| 8 | WPY706189 | Screw (Replaces: 7101P653-60) |
|
Immediately | $ 7.55 | ||||
| 9 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 1A | W10643473 | Guide, Use & Care (microwave Oven) |
|
- | |||||
| 1B | W10756613 | Sheet, Tech |
|
- | |||||
| 4A | W10416255 | Rail, Side (right) |
|
$ 47.39 | |||||
| 6A | W10239157 | Bracket, Lower (right) |
|
$ 20.73 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11449277 | Harness, Interlock (Replaces: W11356969) |
|
Immediately | $ 156.02 | ||||
| NI | W11356954 | Harness, Fan And Turntable |
|
$ 148.75 | |||||
| NI | W11356968 | Harness, Inverter |
|
$ 153.25 | |||||
| NI | W11356986 | Harness, Communication |
|
Immediately | $ 112.86 | ||||
| NI | W11356977 | Harness, Cable Tree Assembly |
|
$ 85.07 | |||||
| NI | W11325605 | Jumper Harness, Communication (Replaces: W11356987) |
|
$ 191.19 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 | |||||
| NI | W11226264 | Strap, Ground (Replaces: W10392129) |
|
- | |||||
| NI | W10760039 | Bag, Hardware (Replaces: W10513362) |
|
$ 12.17 | |||||
| NI | W11356992 | Conduit |
|
$ 223.29 |
