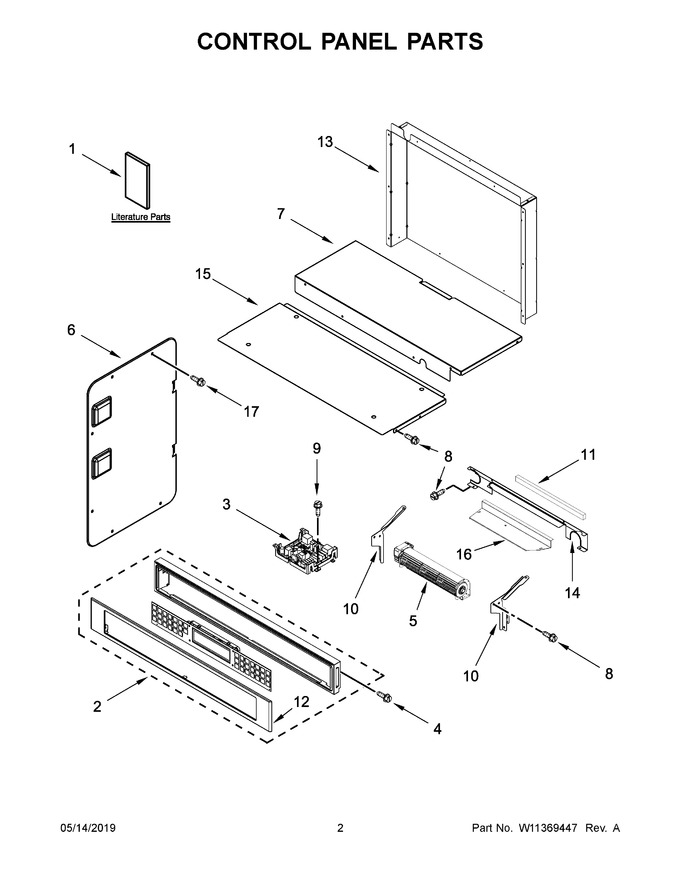

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10725683 | Instructions, Installation |
|
- | |||||
| 2 | W11087458 | Assembly, Control Panel (includes Overlay) (black) (Replaces: W10890571) |
|
$ 697.55 | |||||
| 3 | W11179310 | Control (with Power Supply) (Replaces: W11040195) |
|
Immediately | $ 456.49 | ||||
| 4 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 7.55 | ||||
| 5 | W11713858 | Blower, Dual Speed (Replaces: W11200130) |
|
Immediately | $ 348.59 | ||||
| 6 | W10655467 | Chassis, Combo Side |
|
$ 83.02 | |||||
| 7 | W11037652 | Chassis, Cover Top Back 27" Wifi |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 12 | W10588745 | Skin, Control Panel (black) |
|
- | |||||
| 13 | W11037653 | Cover, Combo Chassis Back Duct (with Hole) |
|
$ 72.05 | |||||
| 14 | W10618126 | Chassis, Back Divider |
|
- | |||||
| 15 | W10318159 | Chassis, Cover Top Front 27 |
|
- | |||||
| 16 | W10681157 | Cover, Combo Blower |
|
- | |||||
| 17 | W10443110 | Screw |
|
Immediately | $ 15.25 | ||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 12A | W10588747 | Skin, Control Panel (white) |
|
- | |||||
| 12B | W10588741 | Skin, Control Panel (stainless) |
|
$ 241.78 | |||||
| 1A | W10643472 | Guide, Use & Care (oven) |
|
- | |||||
| 1B | W10643473 | Guide, Use & Care (microwave Oven) |
|
- | |||||
| 1C | W11041081 | Sheet, Tech (english) |
|
- | |||||
| 1D | W11041082 | Sheet, Tech (french) |
|
- | |||||
| 2A | W10916781 | Assembly, Control Panel (includes Overlay) (white) (Replaces: W10890567) |
|
$ 536.52 | |||||
| 2B | W11093258 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W10890570) |
|
$ 920.12 | |||||
| NI | 4454949 | Holder, Fuse |
|
$ 95.24 | |||||
| NI | W10874060 | Harness, Inverter |
|
$ 148.71 | |||||
| NI | W11229448 | Harness, Communication |
|
Immediately | $ 235.39 | ||||
| NI | W11132989 | Harness, Door Latch |
|
$ 118.98 | |||||
| NI | W11157223 | Harness, Signal |
|
- | |||||
| NI | W11157180 | Harness, Main |
|
$ 256.01 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10760039 | Bag, Hardware (Replaces: W10431303) |
|
$ 12.17 | |||||
| NI | W11226264 | Strap, Ground (Replaces: W10392129) |
|
- | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 21.41 | |||||
| NI | WPW10017410 | Fuse, Time Delay (Replaces: W10017410) |
|
Immediately | $ 22.23 | ||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 |
