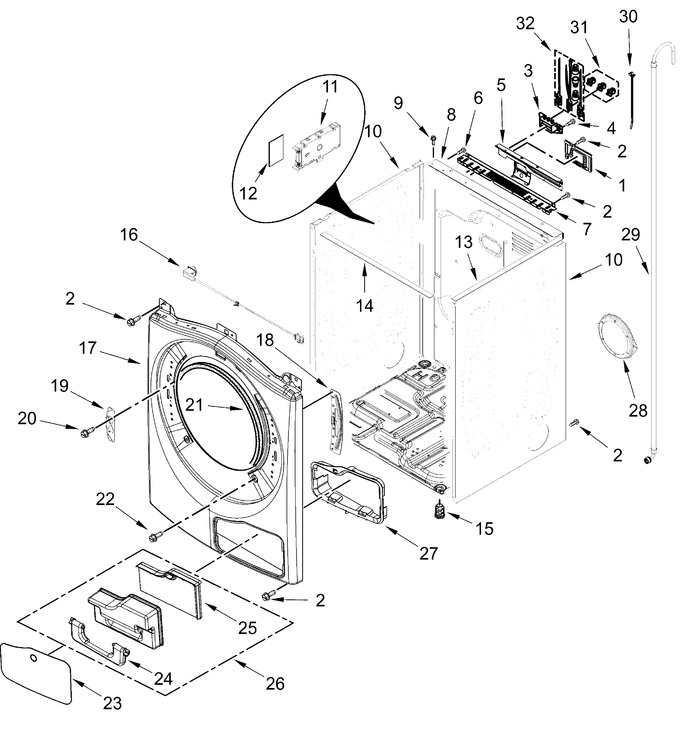

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11662367 | Terminal Block Cover (Replaces: W11394868) |
|
$ 73.16 | |||||
| 2 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 3 | WP3397659 | Terminal Block (Replaces: 3397659) |
|
$ 24.17 | |||||
| 4 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 5 | W10668463 | Bracket, Terminal Cross Bar |
|
- | |||||
| 6 | W10850756 | Screw (Replaces: W10773242) |
|
$ 8.20 | |||||
| 7 | WPW10208382 | Bracket, Rear (Replaces: W10208382) |
|
$ 46.18 | |||||
| 8 | W10524494 | Panel, Rear |
|
$ 299.23 | |||||
| 9 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 10 | W11233548 | Panel, Side (white) (Replaces: W11177568) |
|
$ 261.33 | |||||
| 11 | W11565028 | Appliance Control Unit (acu) (Replaces: W11461222) |
|
Immediately | $ 334.03 | ||||
| 12 | W11409002 | Pad, Foam (Replaces: W10504381) |
|
$ 23.76 | |||||
| 13 | W10686117 | Strip Seal |
|
- | |||||
| 14 | W10608849 | Strip Seal |
|
$ 25.15 | |||||
| 15 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 16 | W11551763 | Door Switch Assembly (Replaces: W11307535) |
|
Immediately | $ 33.27 | ||||
| 17 | W11756134 | Front Panel (white) (Replaces: W11421257) |
|
Immediately | $ 228.67 | ||||
| 18 | W11310030 | Hinge Bracket (Replaces: W11084215) |
|
$ 24.71 | |||||
| 19 | W11310031 | Door Strike (Replaces: W11126752) |
|
$ 29.06 | |||||
| 20 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.73 | |||||
| 21 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 22 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 23 | W11611670 | Secondary Lint Door (Replaces: W11108733) |
|
Immediately | $ 36.37 | ||||
| 24 | W10739609 | Secondary Lint Handle Assembly |
|
$ 85.89 | |||||
| 25 | W11199484 | Secondary Lint Filter (Replaces: W10739605) |
|
Immediately | $ 106.10 | ||||
| 26 | W10897401 | Box Assembly, Secondary Lint (Replaces: W10802056) |
|
Immediately | $ 285.51 | ||||
| 27 | W11194428 | Secondary Lint Bezel Assembly (white) |
|
Immediately | $ 92.38 | ||||
| 28 | W10810480 | Fan Guard |
|
$ 20.90 | |||||
| 29 | W11169712 | Hose, Outlet (Replaces: W10705660) |
|
Immediately | $ 93.08 | ||||
| 30 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 33.43 | |||||
| 31 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 55.66 | ||||
| 32 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 106.04 |
