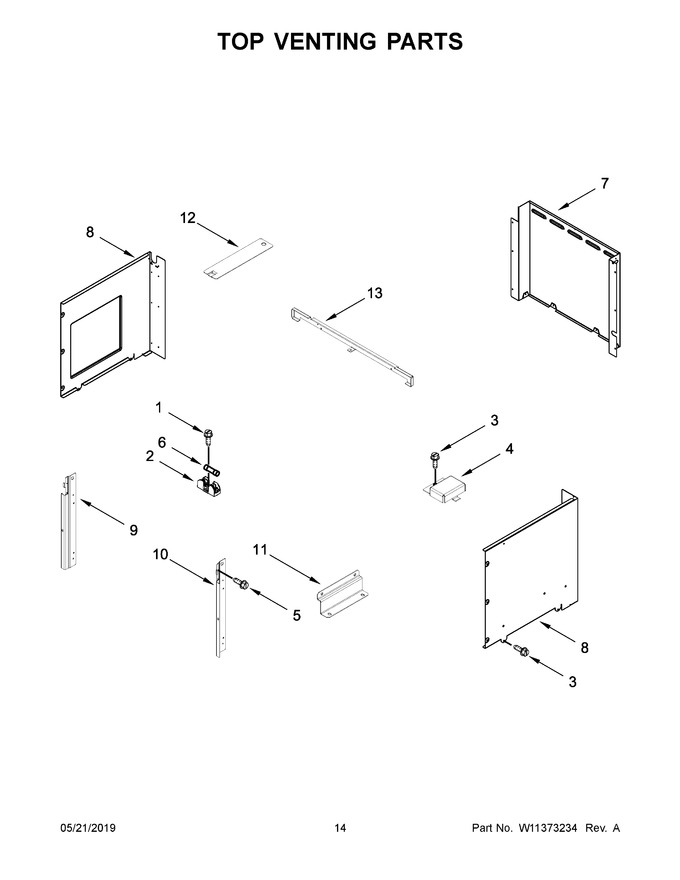

08 - Top Venting Parts


09 - Internal Microwave Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11684512		Screw   (Replaces: 7101P060-60)				$ 14.81
2	4454949		Holder, Fuse				$ 95.24
3	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
4	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
5	WP98008545		Screw (black)   (Replaces: 7101P633-60)				$ 18.60
6	WPW10017410		Fuse, Time Delay   (Replaces: W10017410)			Immediately	$ 22.23
7	W11037653		Cover, Combo Chassis Back Duct (with Hole)				$ 72.05
8	W10655466		Chassis, Combo Side (left)				$ 80.62
9	W10360516		Rail, Side (left)				$ 84.67
10	W10360518		Rail, Side (right)				$ 84.67
11	W10283024		Side, Bracket				$ 78.86
12	W10356437		Cover, Slot Module		Appelez-nous	-
13	W10283022		Support, Crossbar				$ 81.32
8A	W11037649		Chassis, Combo Side (right)				$ 177.54
