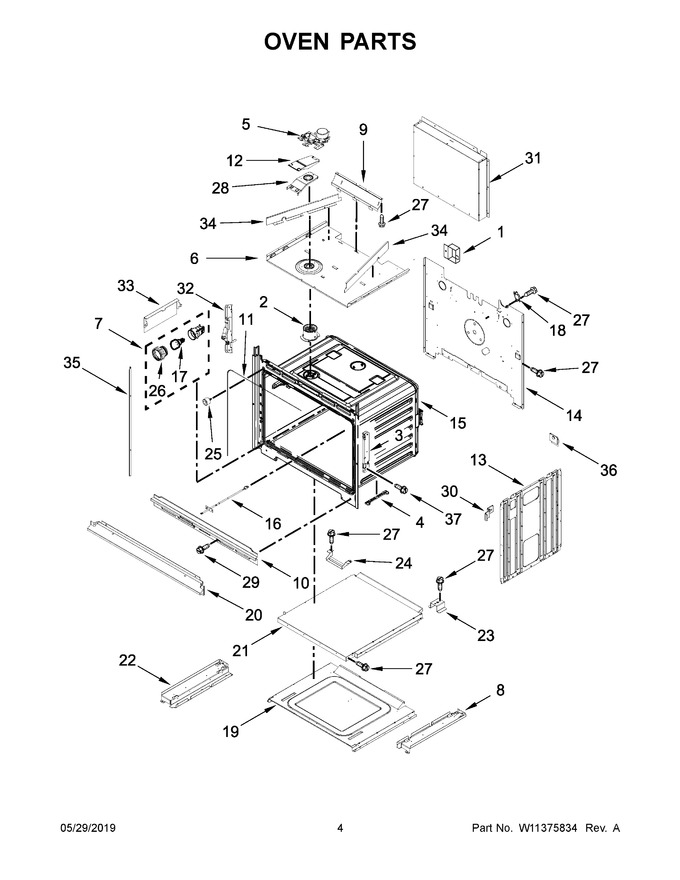

03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Internal Microwave Parts


08 - Top Venting Parts


09 - Microwave Door Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
2	W11240525		Tube, Vent   (Replaces: W11085298)				$ 25.54
3	W11613828		Receiver, Hinge   (Replaces: W11044775)			Immediately	$ 57.49
4	W11240831		Spacer, Base   (Replaces: W10618102)				$ 17.25
5	W10883049		Latch, Motorized   (Replaces: W10618131)			Immediately	$ 306.46
6	W10904159		Chassis, Top		Appelez-nous	-
7	WPW10734063		Assembly, Light   (Replaces: W10734063)				$ 89.05
8	W10283021		Support, Base (right)		Appelez-nous	-
9	W10904163		Deflector, Blower			Immediately	$ 169.79
10	W10495155		Vent, Center 27				$ 91.10
11	W10856596		Gasket   (Replaces: W10282961)			Immediately	$ 105.26
12	W10616810		Cover, Vent Exhaust				$ 69.95
13	W10663556		Side, Chassis (left)		Appelez-nous	-
14	W10904162		Back, Chassis		Appelez-nous	-
15	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
16	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 133.83
17	WPW10412711		Bulb, Light   (Replaces: W10412711)			Immediately	$ 22.61
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 111.84
19	W10282901		Base, Chassis				$ 177.43
20	W10869573		Assembly, Bottom Vent (black Stainless)		Appelez-nous	-
21	WPW10283008		Chassis, Bottom Duct   (Replaces: W10283008)				$ 220.05
22	W10283020		Support, Base (left)		Appelez-nous	-
23	W10213759		Support, Air Channel		Appelez-nous	-
24	W10351308		Spacer, Chassis Bottom Duct				$ 58.73
25	WPW10351278		Bumper & Screw   (Replaces: W10351278)				$ 11.01
26	WPW10412722		Lens, Light   (Replaces: W10412722)			Immediately	$ 19.65
27	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
28	W10616809		Base, Vent Exhaust				$ 32.24
29	WPY706189		Screw   (Replaces: W11249635)			Immediately	$ 7.55
30	W10834501		Spacers, Front				$ 15.94
31	W11037653		Cover, Combo Chassis Back Duct (with Hole)				$ 72.05
32	W11045086		Receiver, Slow Close Hinge			Immediately	$ 128.82
33	W11034940		Shield, Slow Close Hinge				$ 84.98
34	W10681156		Deflector, Chassis		Appelez-nous	-
35	W10536162		Trim, Side (black (left))   (Replaces: W10344483)				$ 38.73
36	W10834286		Spacer, Center				$ 23.10
37	WPW10254050		Screw   (Replaces: W10254050)				$ 9.22
13A	W10318190		Side, Chassis (right)				$ 117.20
35A	W10536162		Trim, Side (black (right)   (Replaces: W10344482)				$ 38.73
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11112951		Insulation		Appelez-nous	-
NI	W10520716		Insulation, Wrap		Appelez-nous	-
NI	W11688333		Insulation, Back   (Replaces: W10282945)		Appelez-nous	-
