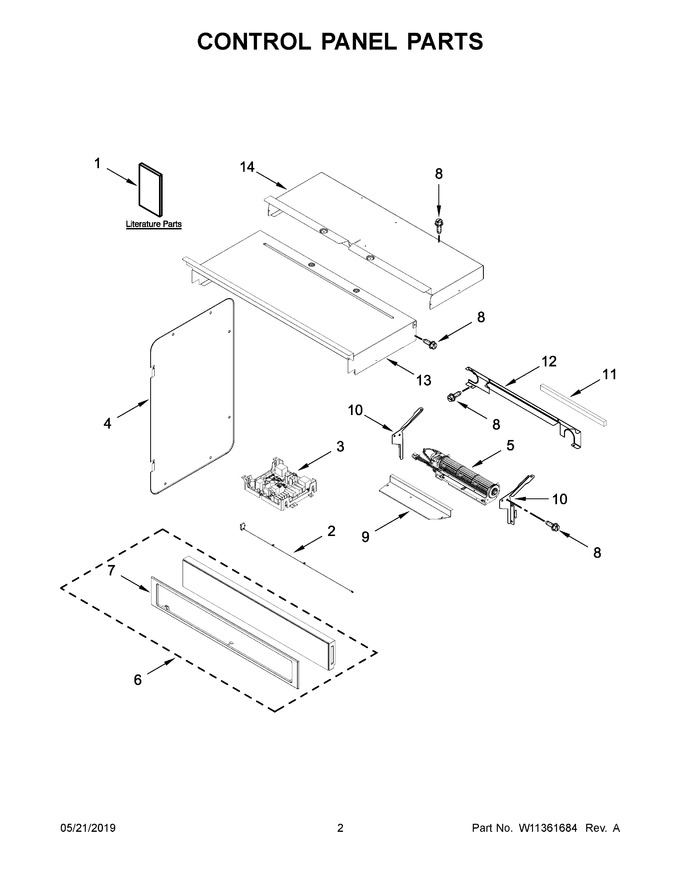

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11220324 | Guide, Use & Care (oven) |
|
- | |||||
| 2 | W11537624 | Antenna (Replaces: W11234541) |
|
$ 106.06 | |||||
| 3 | W11261165 | Appliance Manager, Copernicus (with Power Supply) (Replaces: W11253186) |
|
Immediately | $ 349.13 | ||||
| 4 | W10655467 | Chassis, Combo Side |
|
$ 83.02 | |||||
| 5 | W11248652 | Blower (Replaces: W11200129) |
|
Immediately | $ 241.54 | ||||
| 6 | W11428588 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W11105052) |
|
$ 920.15 | |||||
| 7 | W11156404 | Skin, Control Panel (stainless) (Replaces: W10893983) |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 9 | W10681157 | Cover, Combo Blower |
|
- | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 12 | W10618126 | Chassis, Back Divider |
|
- | |||||
| 13 | W10318158 | Chassis, Cover Top Front 30 |
|
- | |||||
| 14 | W10588732 | Chassis, Cover Top Back 30 |
|
$ 225.86 | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W11108505 | Guide, Use & Care (microwave Oven) |
|
- | |||||
| 1B | W11129957 | Instructions, Installation |
|
- | |||||
| 1C | W11097305 | Guide, Internet Connectivity |
|
- | |||||
| 1D | W11108420 | Sheet, Tech |
|
- | |||||
| 1E | W11108426 | Diagram, Wiring |
|
- | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | W11325605 | Jumper Harness, Communication (Replaces: W11198503) |
|
$ 191.19 | |||||
| NI | W11356990 | Harness, Communication (Replaces: W11233529) |
|
$ 224.43 | |||||
| NI | W11356991 | Harness, Ground Console Combo (Replaces: W11233569) |
|
- | |||||
| NI | W11449277 | Harness, Interlock (Replaces: W10720308) |
|
Immediately | $ 156.02 | ||||
| NI | W10874060 | Harness, Inverter |
|
$ 148.71 | |||||
| NI | W11356954 | Harness, Fan & Turntable (Replaces: W10874059) |
|
$ 148.75 | |||||
| NI | W11315990 | Harness, Signal |
|
- | |||||
| NI | W11315992 | Harness, Main |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | WPW10339879 | Tie, Cable (Replaces: 4454842) |
|
$ 8.30 | |||||
| NI | W11356977 | Harness, Cable Tree Assembly (Replaces: W10889134) |
|
$ 85.07 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 21.41 | |||||
| NI | W11132989 | Harness, Door Latch |
|
$ 118.98 |
