SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Crisper Assy


05 - Deli And Ref Shelf


06 - Evap Fan Assy And Lights


07 - Evaporator Assy And Rollers


08 - Freezer Door


09 - Fz Door And Facade


10 - Fz Shelf


11 - Handles And Trim


12 - Hinges


13 - Ice Bucket Assy


14 - Ice Maker


15 - Light Covers And Toe Grille


16 - Lights And Ice Maker


17 - Refrigerator Door


18 - Supplemental Information


19 - Wiring Information

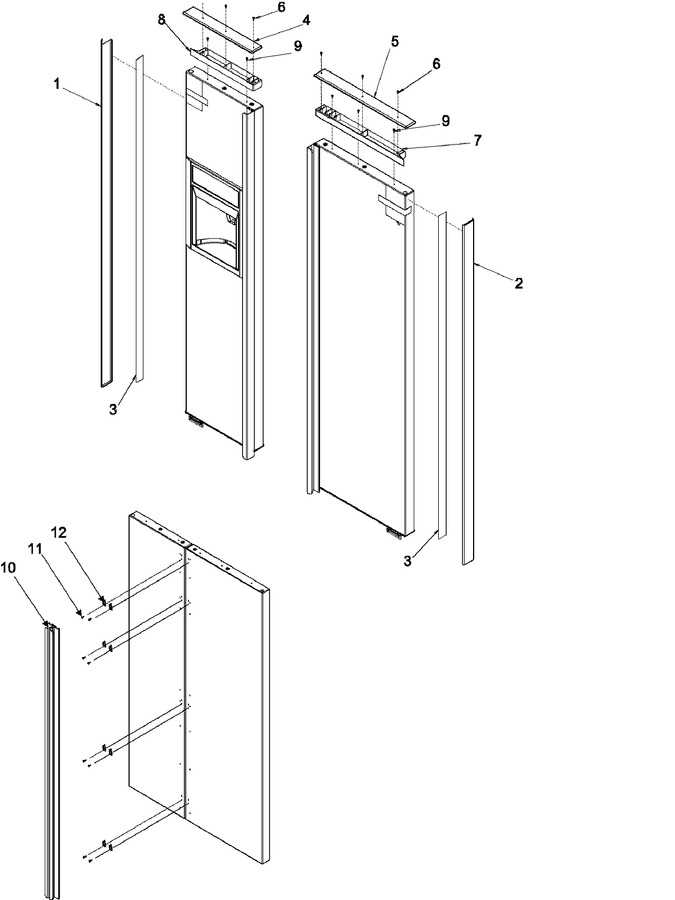

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12638301W		Trim, Vert Fz (wht)		Appelez-nous	-
2	12638302W		Trim, Vert Ref (wht)		Appelez-nous	-
3	R0195044		Tape, Adhesive 9 Ft Roll	10	Appelez-nous	-
4	12626505W		Trim, Top Fz Dr (wht)		Appelez-nous	-
5	12626502W		Trim, Top Ref Dr (wht)		Appelez-nous	-
6	W11245710		Screw, Sm (stnls)   (Replaces: M0210417)	10		Immediately	$ 14.75
7	10979105W		Ext, Ref Dr (wht)		Appelez-nous	-
8	10979201		Ext, Fz Dr (wht)	10	Appelez-nous	-
9	WP489069		Screw   (Replaces: M0220617)	10		Immediately	$ 8.40
10	12626601W		Handle, Dr Extruded (wht)		Appelez-nous	-
11	WP489399		Screw, Se   (Replaces: M0232929)	10			$ 7.30
12	12315101		Clip	10	Appelez-nous	-
