01 - Chassis & Outer Case Assembly
02 - Chassis Assembly
03 - Chassis Assembly
04 - Control Assembly

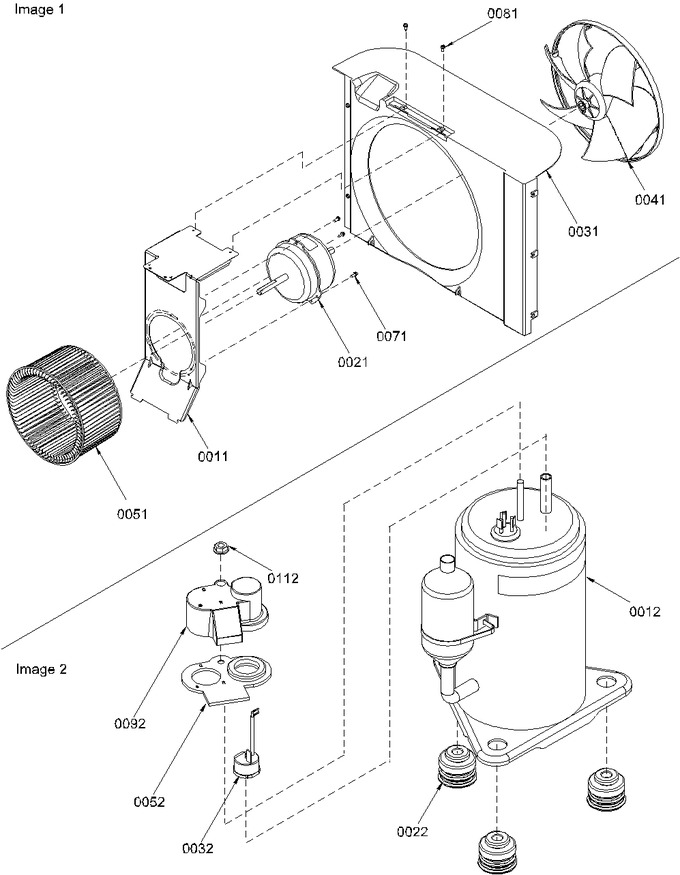

05 - Fan Motor Assembly/compressor Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 20053905 | Bracket, Fan |
|
- | |||||
| 12 | D9831812 | Comp Tc Rka5515exc |
|
- | |||||
| 21 | 20059707 | Motor, Fan |
|
- | |||||
| 22 | A3448601 | Grommet. Comp |
|
- | |||||
| 31 | 20063401 | Shroud, Condenser |
|
- | |||||
| 32 | D6961662 | Overload |
|
- | |||||
| 41 | 20046501 | Fan, Condenser |
|
- | |||||
| 51 | 20061202 | Wheel, Blower |
|
- | |||||
| 52 | B1434901 | Gasket, Term. Cover |
|
- | |||||
| 71 | WP308544 | Screw-tap-r (Replaces: M0254830) |
|
Immediately | $ 8.30 | ||||
| 81 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 | ||||
| 92 | C6470701 | Cover Terminal |
|
- | |||||
| 112 | A9036601 | Nut |
|
- |
