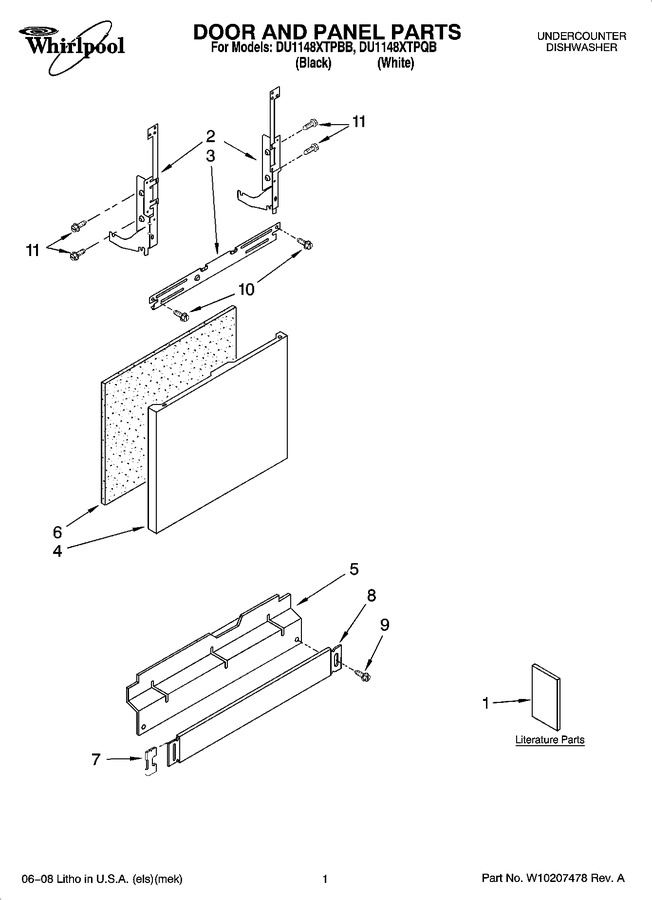

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10142914		Instructions, Installation		Appelez-nous	-
1	W10130986		Guide, Use & Care (english/french)		Appelez-nous	-
1	W10133161		Guide, Use & Care (spanish)		Appelez-nous	-
1	W10082651		Tech Sheet		Appelez-nous	-
1	W10179462		Energy Guide		Appelez-nous	-
2	W11806566		Arm, Hinge (left)   (Replaces: W10143374)			Immediately	$ 66.52
2	W11613572		Arm, Hinge (right)   (Replaces: W10143373)			Immediately	$ 78.37
3	8268983		Stiffener, Door				$ 38.77
4	8269842		Panel Front (white)		Appelez-nous	-
4	W10301571		Panel Front (black)   (Replaces: 8269841)				$ 357.77
5	W11763736		Access Panel Black   (Replaces: 8573255)			Immediately	$ 38.79
5	WPW10441007		Access Panel (white)   (Replaces: 8573256)				$ 162.80
6	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 91.65
7	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 10.68
8	W10871196		Toe Panel (includes Clip) (black)   (Replaces: 8573286)				$ 165.75
8	WP8573287		Toe Panel (includes Clip) (white)   (Replaces: 8573287)				$ 165.12
9	WP302868		Screw Black   (Replaces: 302868)			Immediately	$ 7.75
9	WP3400836		Screw (white)   (Replaces: 3400836)				$ 7.53
10	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 7.85
11	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.00
