SELECT A DIAGRAM

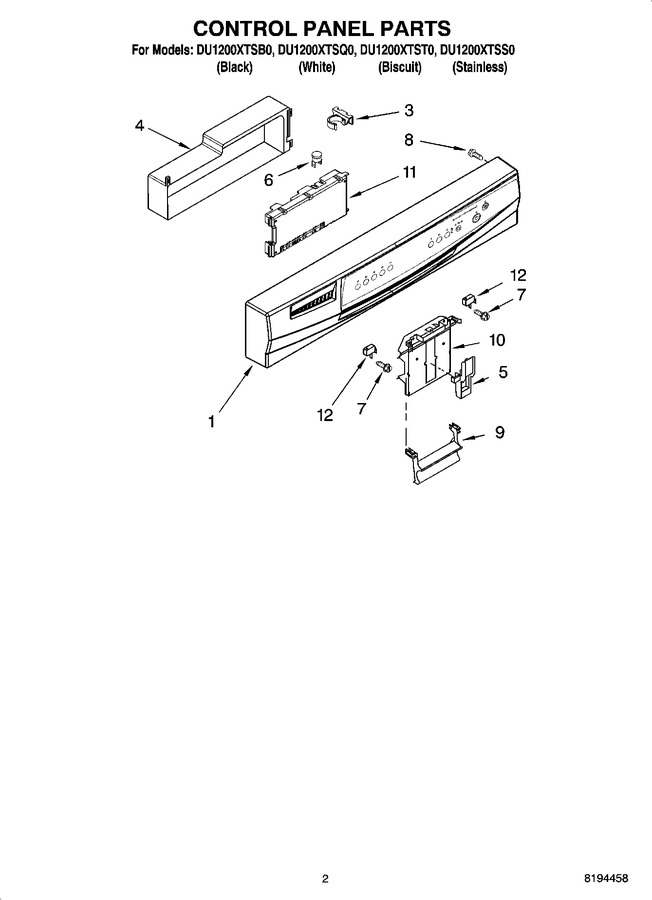

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3385735		Console Asm. (includes Active Overlay & Insert) (white)   (Replaces: 8575791)				$ 406.80
1	W10021790		Console Asm. (includes Active Overlay & Insert) (biscuit)		Appelez-nous	-
1	WPW10459139		Console Asm. (includes Active Overlay & Insert) (black)   (Replaces: 8575790)			Immediately	$ 390.65
3	8546546		Clip, Bi-metal				$ 7.82
4	8558247		Cover Control Shield Assembly		Appelez-nous	-
5	WP8524471		Actuator, Latch   (Replaces: 8524471)			Immediately	$ 101.28
6	W10258275		Fuse, Thermal Electronic   (Replaces: 661663)			Immediately	$ 41.71
7	WP3400412		Screw   (Replaces: 3400412)			Immediately	$ 7.94
8	WPW10348409		Screw (6)   (Replaces: 3369051)			Immediately	$ 8.20
9	WP8534985		Handle, Latch (white)   (Replaces: 8534985)				$ 127.13
9	8534986		Handle, Latch (biscuit)				$ 89.73
9	WP8534984		Handle, Latch (black)   (Replaces: 8534984)				$ 131.06
10	8193882		Bolt, Latch   (Replaces: 8524476)			Immediately	$ 114.47
11	WPW10084141		Control, Electronic   (Replaces: 8562997)			Immediately	$ 313.68
12	WP8269209		Switch, Door   (Replaces: 8269209)			Immediately	$ 43.30

    View Diagram in Separate Window       Print Part List
