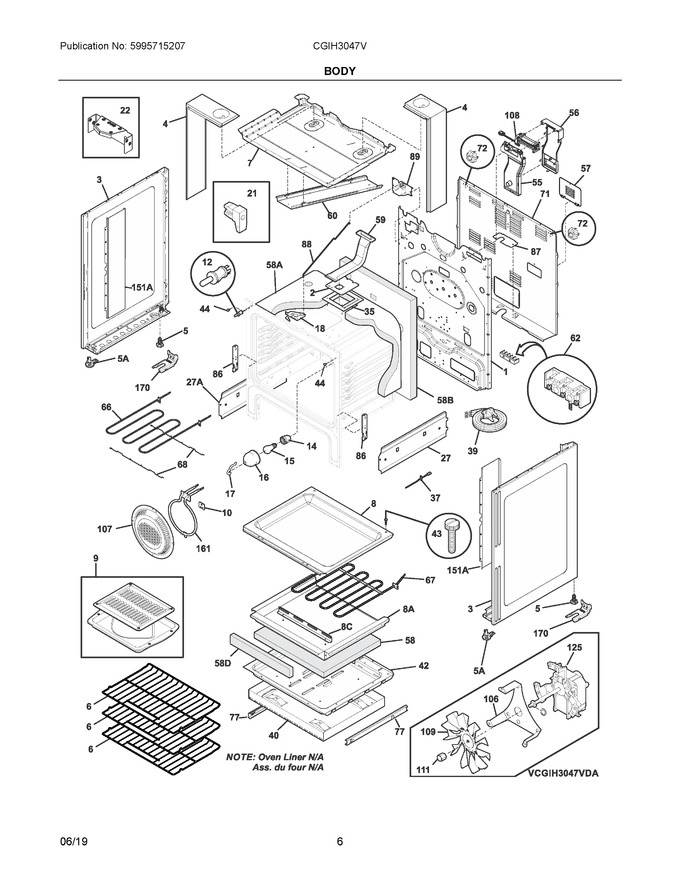

SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard/induction Unit


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304527900		Back, Main   (Replaces: 5304514161)		Appelez-nous	-
2	5304514136		Plate, Oven Vent				$ 37.01
3	316400144		Panel, Bodyside, Black, Rh   (Replaces: 316400136)			Immediately	$ 149.65
4	5304521813		Duct Assembly Kit, Fan Intake, Both Lh & Rh				$ 180.34
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 30.55
6	316496201		Rack, Oven   (Replaces: 316498003)			Immediately	$ 114.98
7	5304519432		Shield, Cassis Top				$ 156.71
8	316505602		Panel, Oven Bottom   (Replaces: 316505601)				$ 158.06
9	5304494997		Broil Pan Kit, Pan & Insert, Slate Blue, Optional, Accessory				$ 72.01
10	5304521822		Plate, Cover, W/seal				$ 11.81
12	316445501		Switch, Oven Light, Door Frame			Immediately	$ 100.01
14	316116400		Receptacle, Oven Light			Immediately	$ 62.33
15	316538904		Lamp, Oven Light   (Replaces: 316538901)			Immediately	$ 22.75
16	5304521821		Glass, Oven Light Lens, W/seal				$ 33.71
17	316087500		Retainer, Lens				$ 63.00
18	316405800		Latch Assembly, Oven Door			Immediately	$ 63.04
21	316408000		Clip, Bodyside				$ 20.22
22	5304514125		Bracket, Support, Body Side, (2)				$ 13.39
27	316604100		Shield, Warmer Side, Rh		Appelez-nous	-
35	316542101		Gasket, Fluebox Insul.			Immediately	$ 14.96
37	316490000		Probe, Oven Temp   (Replaces: 316490003)			Immediately	$ 64.78
39	318113111		Cord, Electric				$ 95.55
40	316602600		Shield, Warmer Drawer		Appelez-nous	-
42	316601600		Shield, Chassis, Lower		Appelez-nous	-
43	316282700		Screw, 8-18 X 1.438, Oven Bottom   (Replaces: 3131732)				$ 11.03
44	316517600		Bumper, Front, Main				$ 13.39
55	5304514171		Duct, Inlet Air, Front			Immediately	$ 42.98
56	5304514172		Duct, Inlet Air, Rear			Immediately	$ 48.03
57	316283600		Cover, Access				$ 13.89
58	316403804		Insulation, Oven Sump		Appelez-nous	-
59	5304514160		Tube, Oven Vent, Upper				$ 48.88
60	5304514357		Duct, Cooling		Appelez-nous	-
62	5303935061		Terminal Block Kit		Appelez-nous	-
66	5304521819		Element, Broil, 4000, 6 Pass W/seal				$ 109.55
67	316505500		Element, Bake, 3000w			Immediately	$ 288.05
68	316429100		Support, Element, Broil				$ 69.46
71	5304514174		Shield, Wire, Rear				$ 122.85
72	5304514177		Spacer, Wire Shield, (2)				$ 14.32
77	316456700		Glide, Warmer Drawer, Outer/rh & Lh, (2)			Immediately	$ 67.73
86	316580700		Receptacle, Hinge, (2)   (Replaces: 316508600)			Immediately	$ 33.86
87	316081202		Bracket, Cable Mtg				$ 5.51
88	316232702		Rod, Auto Latch			Immediately	$ 14.32
89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 58.16
106	316404100		Bracket, Motor Mtg.				$ 70.78
107	316026701		Cover, Fan				$ 454.32
108	5304514166		Fan Assembly, Cooling			Immediately	$ 370.81
109	318398302		Fan Blade			Immediately	$ 32.34
111	316136600		Nut, Fan Retainer			Immediately	$ 21.26
125	316256100		Motor-fan			Immediately	$ 234.64
161	5304521820		Element, Convection, 900w, W/seal				$ 91.00
170	316112005		Anti Tip Kit, Assy, W/template			Immediately	$ 21.01
151A	316404601		Shield, Heat, Bodyside   (Replaces: 5304516866)				$ 23.63
27A	316604104		Shield, Warmer Side, Lh   (Replaces: 316604101)		Appelez-nous	-
3A	316400145		Panel, Bodyside, Black, Lh   (Replaces: 316400137)			Immediately	$ 148.81
58A	316403700		Insulation, Oven Wrapper				$ 337.84
58B	316403600		Insulation, Oven Back				$ 125.75
58D	316509700		Insulation, Oven Bottom				$ 66.94
5A	5304509869		Leveling Leg Assy, Metal, Front, (2), Bracket & Leg			Immediately	$ 16.76
8A	316505701		Base, Bake Element				$ 271.60
8C	316505801		Support, Element				$ 28.31
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	5303288566		Screw, Tr Hd Sqd Ab, 8-18 X 0.25, (8)				$ 2.36
NI	5303271648		Screw, Wafer Hd Sq Dr, 8-18ab X 0.5			Immediately	$ 14.96
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 14.96
NI	5304530641		Harness, Wiring, Main   (Replaces: 5304519400)			Immediately	$ 92.63
NI	5304517545		Harness Assembly, Electric Filter, W/capacitors   (Replaces: 5304512924)			Immediately	$ 39.32
NI	5304532037		Harness, Wiring, Low Voltage   (Replaces: 5304518021)			Immediately	$ 71.79
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316021132		Screw, 8-18 X 11/16, Black, (3)				$ 14.32
NI	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 6.30
NIA	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.37
NIA	316064600		Support, Oven Bottom				$ 21.06
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NIA	316279600		Screw, Bracket, Stiffener, (4)				$ 13.39
NIA	316112005		Bracket, Anti-tip   (Replaces: 316107200)			Immediately	$ 21.01
NIB	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 14.32
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 12.60
NIC	316541700		Template, Anti-tip		Appelez-nous	-
