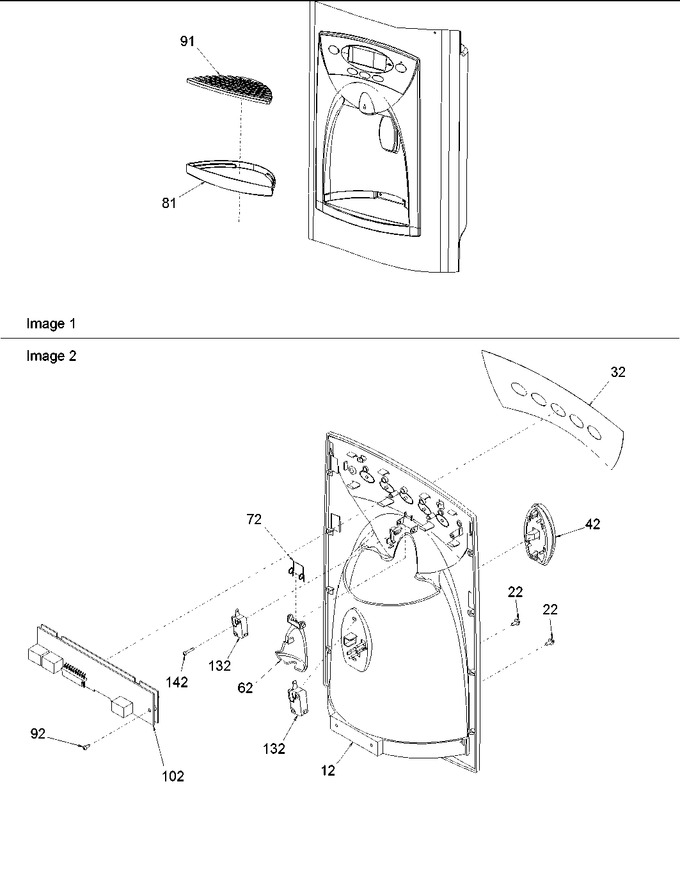

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	12560908B		Facade,disp-5 Button(black)		Appelez-nous	-
22	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 6.95
32	12596902B		Insert,facade(black)		Appelez-nous	-
42	12593202B		Assy,actr Pad Frame(black)		Appelez-nous	-
62	12665402B		Button, Sports Fill (blk)		Appelez-nous	-
72	B8385403		Spring, Sports Fill-return		Appelez-nous	-
81	12561002B		Tray,b/b Sump(black)		Appelez-nous	-
91	12561101B		Grille,b/b Sump(black)		Appelez-nous	-
92	2006254		Screw,hi/lo   (Replaces: M0237902)				$ 13.13
102	12559203		Board, Control		Appelez-nous	-
132	WP12575501		Switch, Limit   (Replaces: 12575501)				$ 68.90
142	M0237945		Screw,hi/lo		Appelez-nous	-
NI	WPM0104106		Clip   (Replaces: M0104106)				$ 7.78
