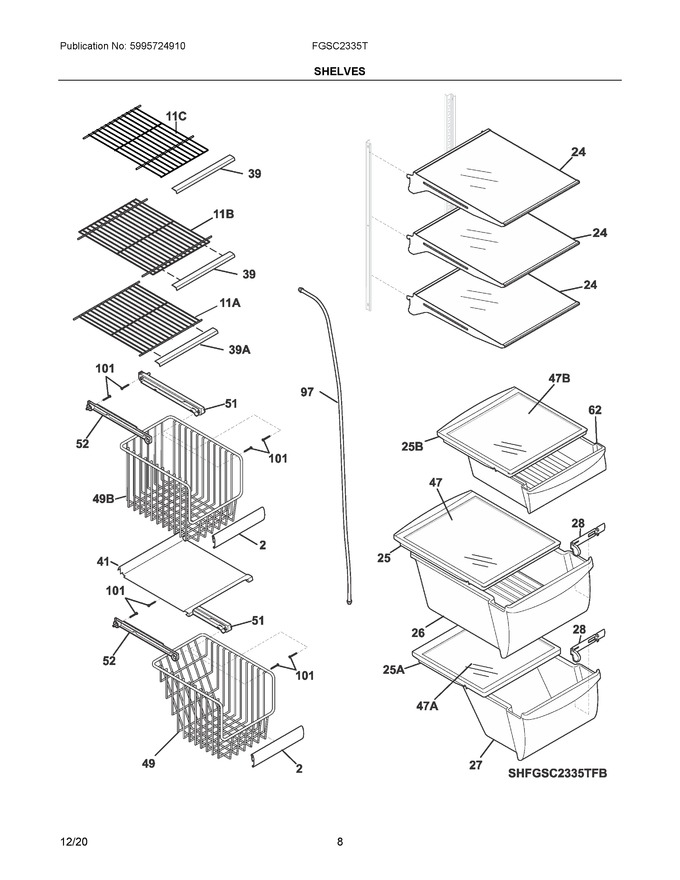

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241510611		Trim-basket				$ 21.27
24	5304512783		Shelf-"spill-safe", Cantilever, Fixed				$ 245.21
25	240599301		Cover-crisper Pan, Upper			Immediately	$ 104.87
26	240351061		Pan-crisper, Upper			Immediately	$ 122.23
27	240351240		Pan-crisper, Lower				$ 226.05
28	240362201		Control-humidity				$ 77.18
39	240430719		Trim-shelf, Wire, Front		Appelez-nous	-
41	241637601		Baffle-air				$ 87.05
47	240350649		Insert-pan Cover, Glass			Immediately	$ 137.66
49	241515001		Basket-sliding				$ 209.10
51	241514501		Hanger-basket, Rh				$ 81.90
52	241514601		Hanger-basket, Lh				$ 85.05
62	241974604		Pan-meat   (Replaces: 241974601)				$ 146.22
97	242220119		Tube-water, 97.5", Natural, Filter Base To, Secondary Valve			Immediately	$ 33.86
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 14.96
11A	241657605		Shelf-freezer, Flip-up		Appelez-nous	-
11B	241657506		Shelf-freezer, Fixed Wire		Appelez-nous	-
11C	809078201		Shelf, Pizza		Appelez-nous	-
25A	240350903		Cover-crisper Pan, Lower				$ 102.21
25B	240599803		Frame-deli Cover, Upper			Immediately	$ 100.61
39A	240430723		Trim-shelf, Front		Appelez-nous	-
47A	240350603		Insert-pan Cover, Glass			Immediately	$ 128.36
47B	240443391		Insert-pan Cover, Glass			Immediately	$ 137.35
49B	241514901		Basket-sliding, Upper, Full		Appelez-nous	-
NI	240349801		Clip-slide, Pan				$ 22.75
NI	240362101		Clip-slide, Cover				$ 52.25
NIA	241806601		Connector-water, Straight, 5/16 To 5/16   (Replaces: 242103001)			Immediately	$ 78.40
NIA	241781601		Seal-return Air				$ 10.11
NIB	242200102		Clip, Tubing, 90 Deg Elbow				$ 11.81
