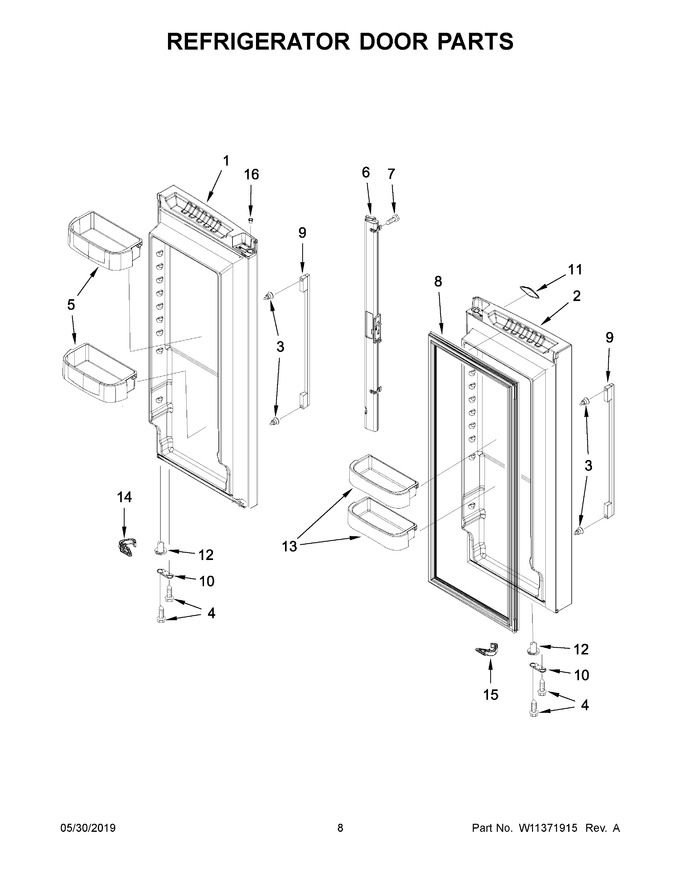

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11307285 | Door, Left (stainless) (Replaces: W11254631) |
|
$ 932.89 | |||||
| 2 | W11307295 | Door, Right (stainless) (Replaces: W11254643) |
|
$ 950.14 | |||||
| 3 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 4 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 5 | WPW10351081 | Bucket, Door Left Hand (small) (Replaces: W10351081) |
|
Immediately | $ 73.03 | ||||
| 6 | WP12722803AP | Mullion, Door (grey) (Replaces: 12722803APN) |
|
Immediately | $ 177.93 | ||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W10830283 | Gasket, Door Left Hand (grey) |
|
$ 205.44 | |||||
| 9 | W11416489 | Handle, Door (stainless) (Replaces: W11216563) |
|
$ 191.33 | |||||
| 10 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 11 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 12 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 13 | WPW10371194 | Bucket, Door Right Hand (medium) (Replaces: W10371194) |
|
Immediately | $ 77.23 | ||||
| 14 | W10918008 | Latch, Door Closer Left Hand (grey) (Replaces: W10833741) |
|
$ 17.64 | |||||
| 15 | W10918010 | Latch, Door Closer Right Hand (grey) (Replaces: W10833739) |
|
Immediately | $ 17.64 | ||||
| 16 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 13A | WPW10289497 | Bucket, Door Right Hand (gallon) (Replaces: W10289497) |
|
Immediately | $ 81.09 | ||||
| 5A | WP12918704 | Bucket, Door Left Hand (gallon (clear)) (Replaces: 12918704) |
|
Immediately | $ 87.02 | ||||
| 8A | W10830162 | Gasket, Door Right Hand (grey) |
|
Immediately | $ 212.57 |
