Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11842830 Dishrack, Upper   (Replaces: 8539214) In-Stock Immediately $ 179.58

2 WP8268655 Mount, Wheel   (Replaces: 8268655) In-Stock Immediately $ 36.37

3 WP3385089 Track Rack   (Replaces: 3385089) In-Stock Immediately $ 80.00

4 WP8565925 Stop Track   (Replaces: 8565920) In-Stock Immediately $ 6.87

5 8539153 Cupshelf, Assembly Appelez-nous -
6 WP8539113 Clip, No-flip   (Replaces: 8539113) Special Order $ 11.43

7 8562056 Clip, Side (light Items) Special Order $ 5.51

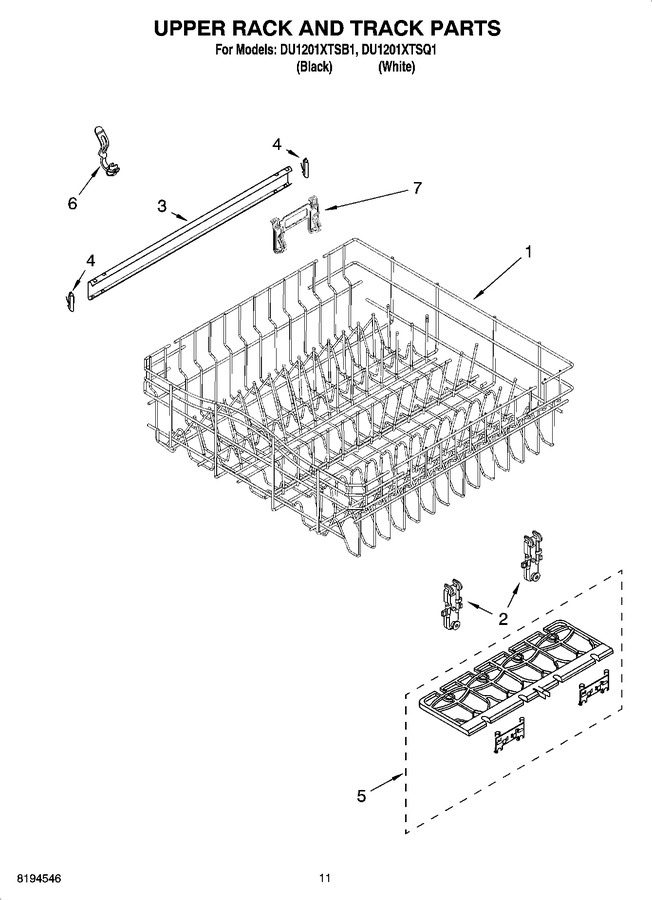

    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for DU1201XTSQ1
