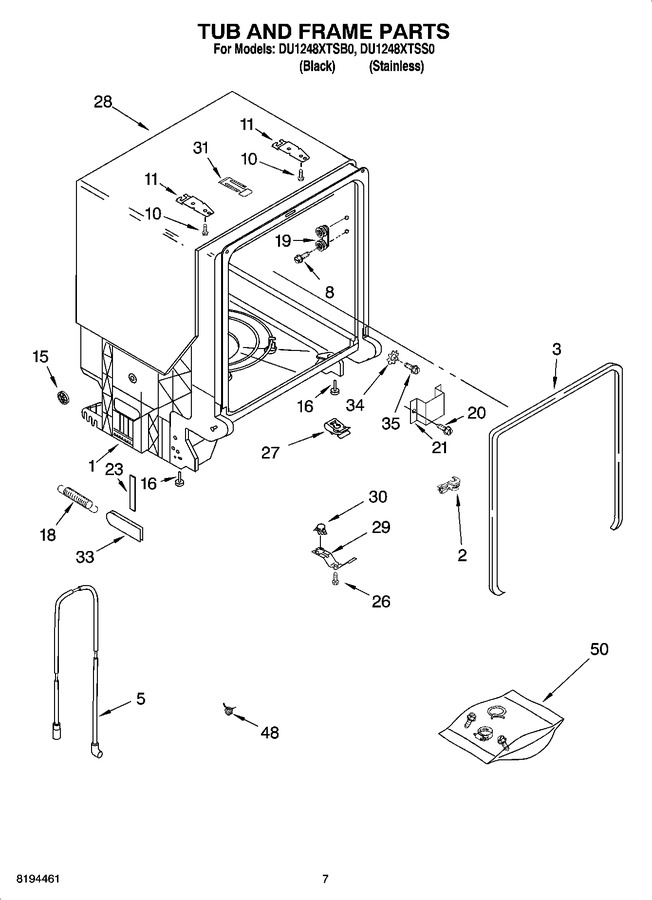

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10413848 | Tub Assembly (Replaces: W10008370) |
|
$ 501.73 | |||||
| 2 | W11384788 | Strain, Relief (Replaces: 8573061) |
|
$ 21.51 | |||||
| 3 | W10542314 | Door Seal (Replaces: 8268888) |
|
Immediately | $ 97.26 | ||||
| 5 | WPW10358302 | Drain Loop With Check Valve (Replaces: 8531022) |
|
Immediately | $ 76.53 | ||||
| 8 | W10817436 | Screw (8) (Replaces: 8533836) |
|
Immediately | $ 7.74 | ||||
| 10 | WP308685 | Screw (Replaces: 3367670) |
|
Immediately | $ 7.87 | ||||
| 11 | WP8269145 | Bracket,undercounter (Replaces: 8269145) |
|
Immediately | $ 19.33 | ||||
| 15 | WP8269831 | Wheel Leg (Replaces: 8269831) |
|
$ 7.52 | |||||
| 16 | 8193716 | Leveler, Leg (Replaces: 8524584) |
|
Immediately | $ 84.72 | ||||
| 18 | WPW10337934 | Spring, Door Balance (Replaces: 8524473) |
|
Immediately | $ 34.61 | ||||
| 19 | WP8270016 | Wheel & Mount Assembly (Replaces: 8270016) |
|
$ 84.61 | |||||
| 20 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 7.75 | |||||
| 21 | W11779375 | Cover, Terminal Box (Replaces: 8268991) |
|
$ 26.79 | |||||
| 23 | WP8268961 | Pad, Friction (Replaces: 8268961) |
|
Immediately | $ 5.93 | ||||
| 26 | WP304231 | Screw, (Replaces: 304231) |
|
Immediately | $ 7.75 | ||||
| 27 | WP8269016 | Clip, Grounding (Replaces: 8269016) |
|
$ 10.68 | |||||
| 28 | W11086533 | Shield, Sound Tub (Replaces: 8573240) |
|
Immediately | $ 31.30 | ||||
| 29 | W10539489 | Bracket, Thermostat (Replaces: 3378595) |
|
$ 19.18 | |||||
| 30 | WP661566 | Thermostat (Replaces: 661566) |
|
Immediately | $ 31.28 | ||||
| 31 | WP8580309 | Strike, Latch (Replaces: 8580309) |
|
Immediately | $ 44.69 | ||||
| 33 | WP8268990 | Bushing, Door Spring (Replaces: 8268990) |
|
Immediately | $ 30.52 | ||||
| 34 | WP3378128 | Washer (Replaces: 3378128) |
|
$ 9.03 | |||||
| 35 | WP3400014 | Screw (Replaces: 3400014) |
|
$ 7.75 | |||||
| 48 | WP356138 | Clamp, Hose (1) (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 50 | WPW10292170 | Miscellaneous Parts Bag (includes 2 Screws &2 Hose Clamps) (Replaces: 8269297) |
|
$ 92.28 |
