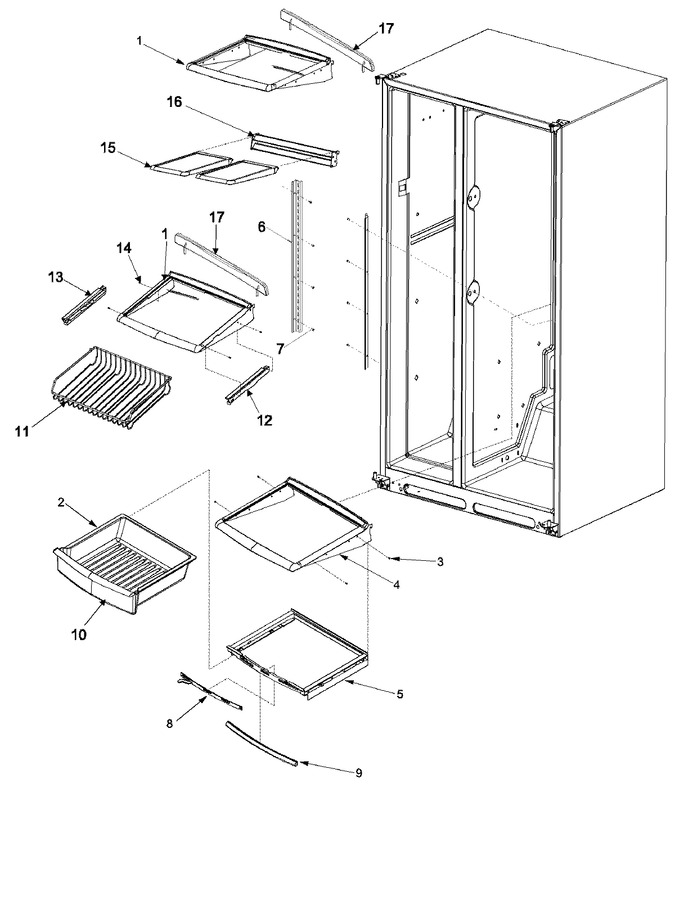

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12457501		Shelf, Glide	10	Appelez-nous	-
2	67001505		Pan, Sm Crisper	10			$ 59.94
3	W11233072		Screw   (Replaces: M0214931)	10		Immediately	$ 14.72
4	67003389		Shelf, Sta B/b 26	10	Appelez-nous	-
5	67002900		Frame, Sm Crisper	10	Appelez-nous	-
6	67001178		Ladder, Side	10	Appelez-nous	-
7	WP90767		Screw, Sm   (Replaces: M0211016)	10		Immediately	$ 8.25
8	12562602U		Slide, Sm Crisper (blue)	10	Appelez-nous	-
9	12589104		Seal, Sm Crisper Front	10	Appelez-nous	-
10	12560401		Front, Sm Crisper Pan	10	Appelez-nous	-
11	12565901		Rack, Can	10	Appelez-nous	-
12	12579601		Glide, Can Rack (rt)	10	Appelez-nous	-
13	12579602		Glide, Can Rack (lt)	10	Appelez-nous	-
14	W11233072		Screw   (Replaces: M0214931)	10		Immediately	$ 14.72
15	67001180		Shelf, Specialty	10	Appelez-nous	-
16	12617801		Rack, Shelf	10	Appelez-nous	-
17	67002897		Extension, Ref Shelf	10	Appelez-nous	-
NI	67002901		Sm Crisper Frame Assy	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
