Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10199799 Dishrack, Upper Special Order $ 179.84

2 W10888592 Mount, Wheel   (Replaces: 8575281) In-Stock Immediately $ 54.85

3 WP3385089 Track Rack   (Replaces: 3385089) In-Stock Immediately $ 80.00

4 WP8565925 Stop Track   (Replaces: 8565920) In-Stock Immediately $ 6.87

5 8562078 Spacer, Track Appelez-nous -
6 WP8539113 Clip, No-flip   (Replaces: 8539113) Special Order $ 11.43

7 8268826 Clip, Cupshelf Special Order $ 22.17

8 WP8268828 Cupshelf, Small   (Replaces: 8268828) Special Order $ 135.89

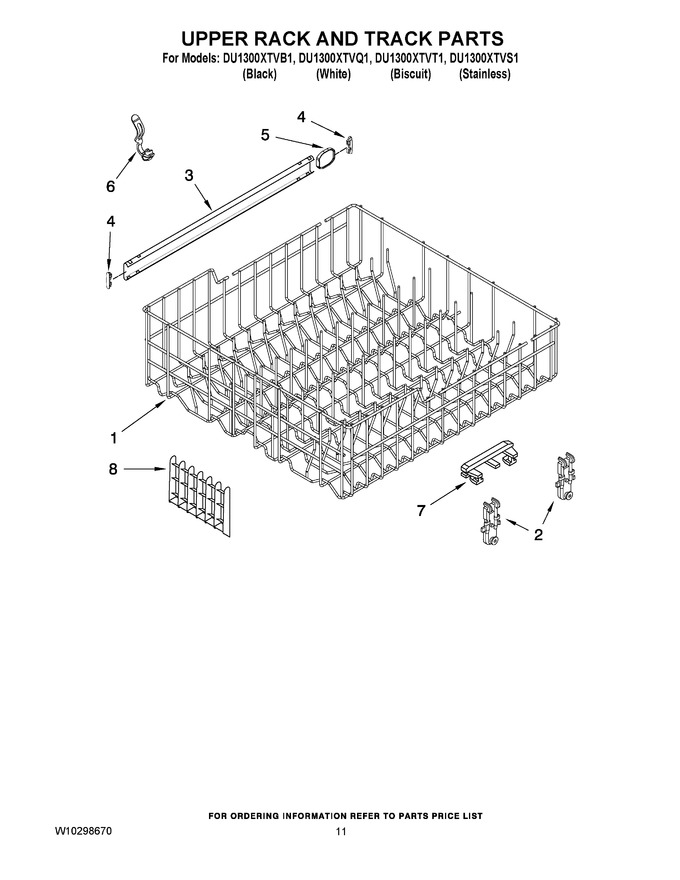

    View Diagram in Separate Window     Print Icon   Print Part List
