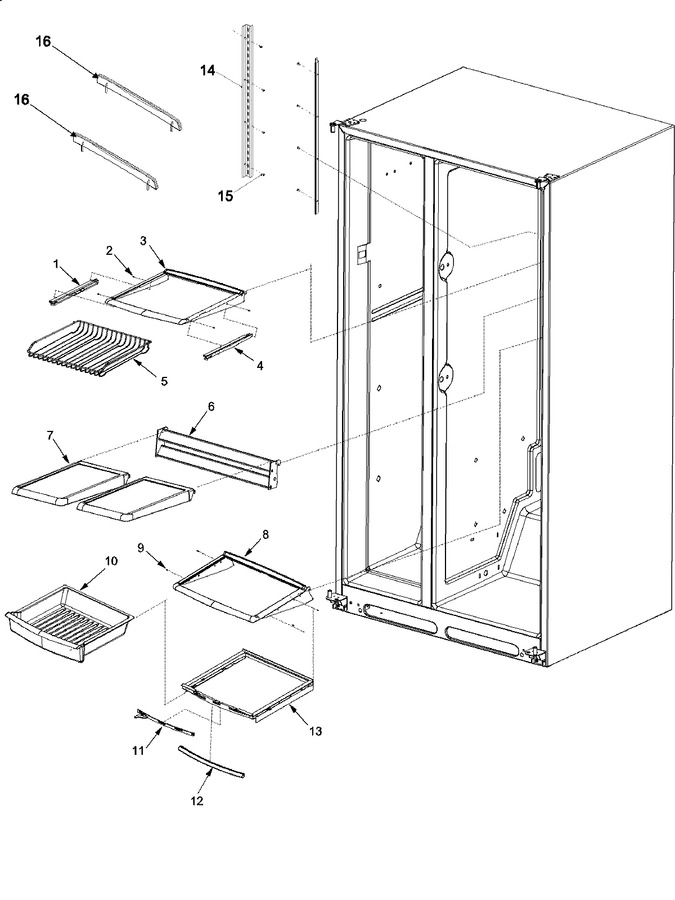

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12579602		Glide, Can Rack (lt)		Appelez-nous	-
2	W11233072		Screw   (Replaces: M0214931)			Immediately	$ 14.72
4	12579601		Glide, Can Rack (rt)		Appelez-nous	-
5	12565901		Rack, Can		Appelez-nous	-
6	12617801		Rack, Shelf		Appelez-nous	-
7	67001180		Shelf, Specialty		Appelez-nous	-
8	67003389		Shelf, Sta B/b 26		Appelez-nous	-
9	W11233072		Screw   (Replaces: M0214931)			Immediately	$ 14.72
10	67001505		Pan, Sm Crisper				$ 59.94
11	12562602U		Slide, Sm Crisper (blue)		Appelez-nous	-
12	12589104		Seal, Sm Crisper Front		Appelez-nous	-
13	67002900		Frame, Sm Crisper		Appelez-nous	-
14	67001178		Ladder, Side		Appelez-nous	-
15	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
16	67002897		Extension, Ref Shelf		Appelez-nous	-
NI	67002901		Sm Crisper Frame Assy		Appelez-nous	-
