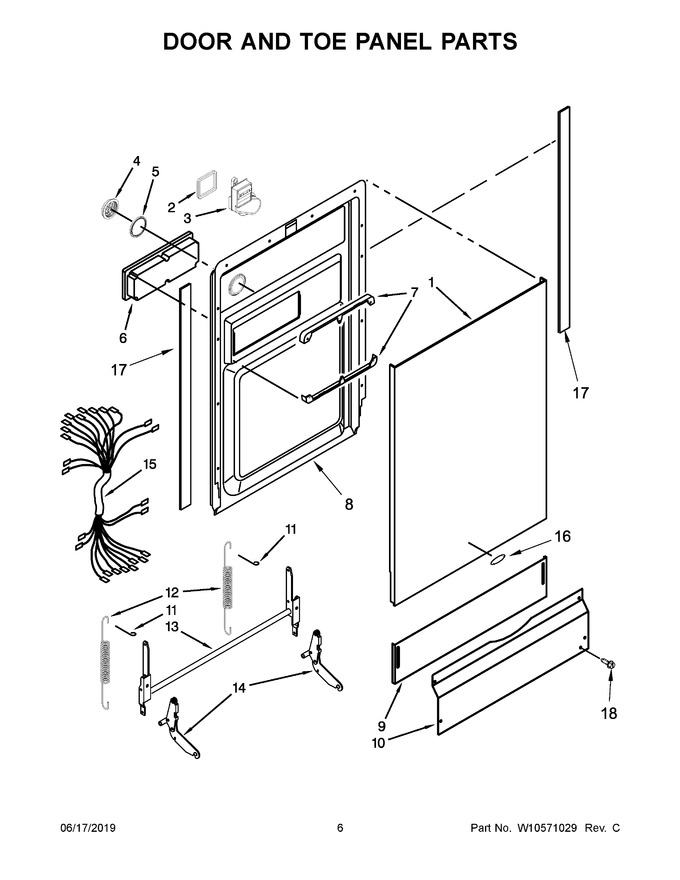

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10567689		Panel, Door (black)   (Replaces: W10567689)			Immediately	$ 217.38
2	W10567582		Gasket, Vent		Appelez-nous	-
3	W10567581		Vent		Appelez-nous	-
4	W10567579		Deflector, Vent		Appelez-nous	-
5	W10567580		Gasket, Deflector		Appelez-nous	-
6	W10567604		Dispenser				$ 132.51
7	W10567606		Bracket, Dispenser		Appelez-nous	-
8	WPW10567697		Door, Inner   (Replaces: W10567697)				$ 280.66
9	WPW10567713		Panel, Toe (black)   (Replaces: W10567713)				$ 126.60
10	W10567715		Panel, Access (black)				$ 63.95
11	W10567596		Pin, Door Spring				$ 15.25
12	W10567691		Spring, Door				$ 32.38
13	W10567692		Hinge, Bracket		Appelez-nous	-
14	W10567695		Hinge, Door (left Hand)				$ 208.35
15	W10567696		Wiring Harness				$ 240.18
16	WPW10393264		Nameplate (grey)   (Replaces: W10567595)				$ 60.97
17	W10567609		Guard, Inner Door (black)		Appelez-nous	-
18	W10517912		Screw (black)				$ 7.54
10A	W10567712		Panel, Access (white)		Appelez-nous	-
14A	W10567694		Hinge, Door (right Hand)				$ 208.42
16A	W10567593		Nameplate (white)		Appelez-nous	-
17A	W10567608		Guard, Inner Door (white)		Appelez-nous	-
18A	W10517911		Screw (white)		Appelez-nous	-
1A	WPW10567688		Panel, Door (white)   (Replaces: W10567688)				$ 216.53
1B	WPW10567690		Panel, Door (stainless)   (Replaces: W10567690)				$ 237.87
9A	WPW10567714		Panel, Toe (white)   (Replaces: W10567714)				$ 123.30
