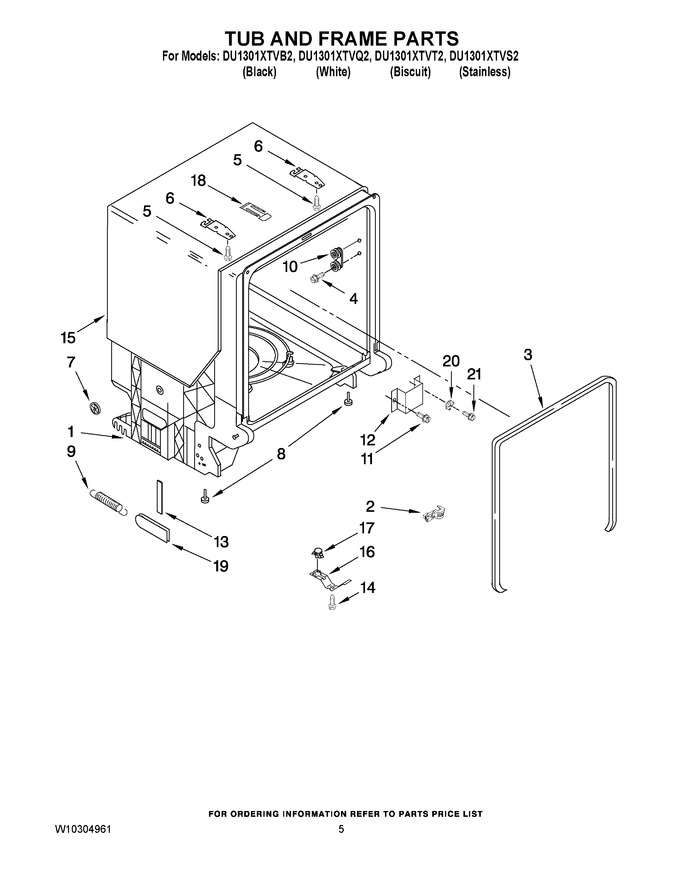

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10413848 | Tub Assembly (includes Heater Assembly) (Replaces: W10254858) |
|
$ 602.70 | |||||
| 2 | W11384788 | Strain, Relief (Replaces: 8573061) |
|
$ 22.59 | |||||
| 3 | W10542314 | Door Seal (Replaces: 8268888) |
|
Immediately | $ 97.26 | ||||
| 4 | W10817436 | Screw (Replaces: 8533836) |
|
Immediately | $ 8.14 | ||||
| 5 | W10165274 | Screw |
|
$ 13.47 | |||||
| 6 | WP8269145 | Bracket,undercounter (Replaces: 8269145) |
|
Immediately | $ 19.33 | ||||
| 7 | WP8269831 | Wheel Leg (Replaces: 8269831) |
|
$ 7.90 | |||||
| 8 | 8193716 | Leveler, Leg (Replaces: 8524584) |
|
Immediately | $ 88.96 | ||||
| 9 | WPW10337934 | Spring, Door Balance (Replaces: 8524473) |
|
Immediately | $ 36.34 | ||||
| 10 | WP8270016 | Wheel & Mount Assembly (Replaces: 8270016) |
|
$ 88.84 | |||||
| 11 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 8.24 | |||||
| 12 | W11779375 | Cover, Terminal Box (Replaces: 8268991) |
|
$ 29.53 | |||||
| 13 | WP8268961 | Pad, Friction (Replaces: 8268961) |
|
Immediately | $ 5.93 | ||||
| 14 | WP304231 | Screw, (Replaces: 304231) |
|
Immediately | $ 8.14 | ||||
| 15 | W11086533 | Shield, Sound Tub (Replaces: 8573240) |
|
Immediately | $ 31.30 | ||||
| 16 | W10539489 | Bracket, Thermostat (Replaces: 3378595) |
|
$ 20.14 | |||||
| 17 | WP661566 | Thermostat (Replaces: 661566) |
|
Immediately | $ 31.28 | ||||
| 18 | WP8580309 | Strike, Plate (Replaces: 8580309) |
|
Immediately | $ 44.69 | ||||
| 19 | WP8268990 | Bushing, Door Spring (Replaces: 8268990) |
|
Immediately | $ 30.52 | ||||
| 20 | WP3378128 | Washer (Replaces: 3378128) |
|
$ 11.81 | |||||
| 21 | WP3400014 | Screw (Replaces: 3400014) |
|
$ 8.24 |
