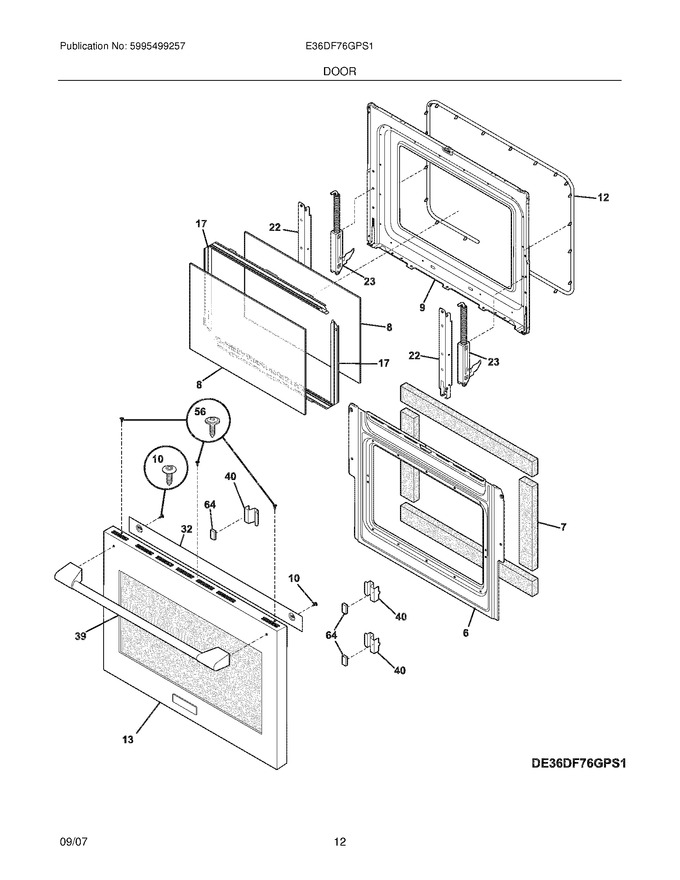

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318260550		Baffle,door		Appelez-nous	-
7	318372003		Insulation,door		Appelez-nous	-
8	318212250		Glass,oven Door ,heat Barrier ,(2)				$ 290.70
9	318364602		Liner,oven Door				$ 437.33
10	240442708		Screw,handle Mtg ,10-32 X 3/4   (Replaces: 5304400794)				$ 9.27
12	318053151		Gasket,oven Door Seal				$ 110.09
13	318344011		Door Assmebly,stainless/glass ,w/badge		Appelez-nous	-
17	318376401		Spacer,door Glass ,(2)		Appelez-nous	-
22	318353803		Retainer,hinge				$ 58.28
23	318244304		Hinge Assy,(2)				$ 317.67
32	318390501		Deflector,handle		Appelez-nous	-
39	318392400		Handle,door		Appelez-nous	-
40	318364700		Bracket,glass ,(4)		Appelez-nous	-
56	5304436875		Screw,8-18 X 1/2,black				$ 16.01
64	318165800		Spacer				$ 19.69
NI	316433603		Label,anti-tip				$ 3.94
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
