01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

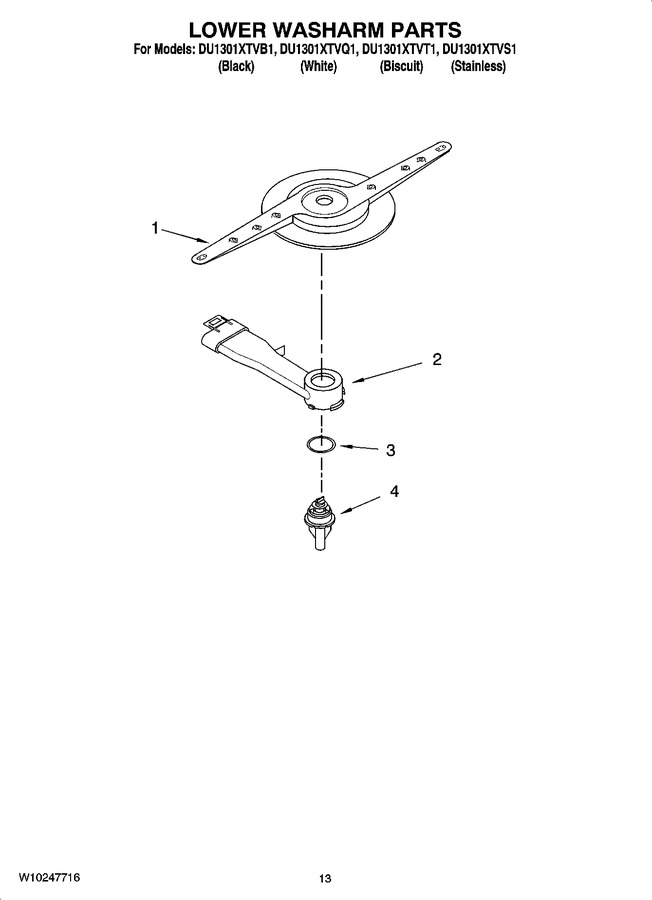

1	8268333		Wash Arm Assembly		Appelez-nous	-
2	WP8268317		Cap, Internal Rear Feed   (Replaces: 8268317)				$ 108.52
3	WP8268340		Seal, Sprayarm   (Replaces: 8268340)			Immediately	$ 6.80
4	WP8268342		Hub, Lower Sprayarm   (Replaces: 8268342)				$ 88.90
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	8171659		Side Panel Kits (stainless Steel)				$ 705.00
	4396199		Custom Panel & Trim Kit (black)		Appelez-nous	-
	4396200		Custom Panel & Trim Kit (white)		Appelez-nous	-
	4396201		Custom Panel & Trim Kit (biscuit)		Appelez-nous	-
	4396277		Moisture Barrier Kit (kit)				$ 48.77
	3385556		Drain Hose (12 Ft)			Immediately	$ 38.26
	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 27.77
	W10202939		Paint, Touch-up 1/2 Oz. (meteorite)   (Replaces: 4396603)				$ 26.23
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 59.89
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	4392900		Paint, Bulk (1qt.) (biscuit)		Appelez-nous	-
	4317824		Power Cord Kit (includes Powercord & Misc.hardware)			Immediately	$ 19.77
	4396194		Floor Mount Kit				$ 44.03
	8212560		Side Mount Kit			Immediately	$ 39.11
	4396838RC		Tip Tine Repair Kit (enough For Two Complete Dishracks) (white)   (Replaces: 4396838)			Immediately	$ 74.08
	4396840RC		Tip Tine Repair Kit (enough For Two Complete Dishracks) (grey)   (Replaces: 4396840)			Immediately	$ 74.08
	WP676453		Vinyl Touch-up (4oz.) (white)   (Replaces: 676453)			Immediately	$ 53.65
	WP676455		Vinyl Touch-up (4oz.) (grey)   (Replaces: 676455)			Immediately	$ 39.58
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	8171656		Side Panel Kits (white)				$ 418.17
	8171657		Side Panel Kits (black)				$ 625.77
	8171658		Side Panel Kits (biscuit)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
