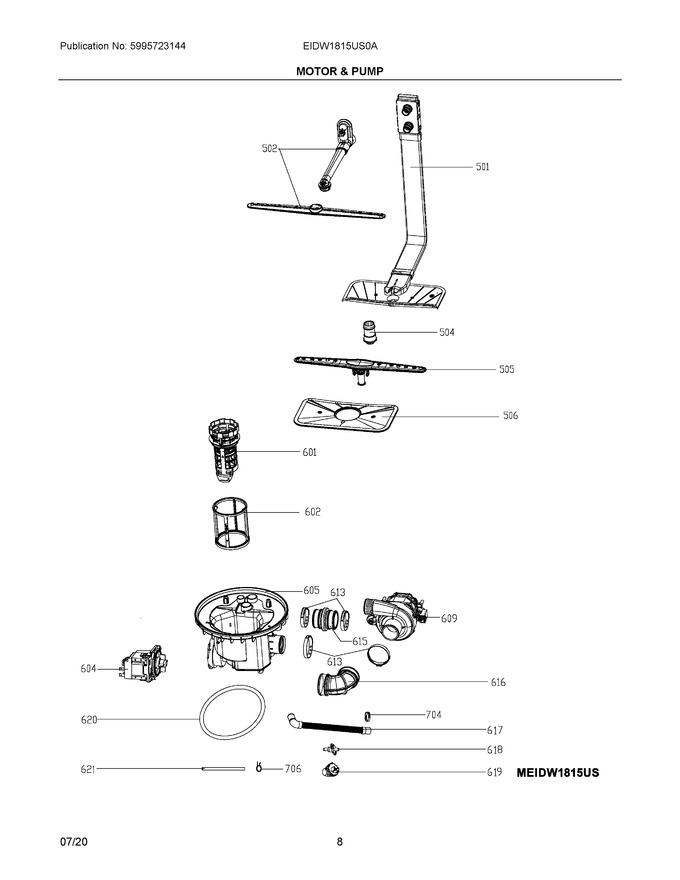

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
501	4055437794		Tube Assembly, Distribution, Inne   (Replaces: 5304519264)		Appelez-nous	-
502	5304519265		Spray Arm, Assembly, Upper, W/manifold			Immediately	$ 72.83
504	5304519266		Support, Spray Arm, Lower				$ 12.85
505	5304519267		Spray Arm, Assembly, Lower				$ 92.38
506	5304519268		Filter Assembly, Flat, Tub		Appelez-nous	-
601	5304522082		Handle, Sump Filter		Appelez-nous	-
602	5304519270		Filter Assembly, Sump		Appelez-nous	-
604	5304519271		Pump Assembly, Water, Synchronous				$ 362.16
605	5304519272		Sump, Assembly				$ 72.88
609	5304525290		Pump Assembly, Water, Complete, Induction				$ 301.61
613	5304519278		Clamp, Tube, Wash Group		Appelez-nous	-
615	5304522083		Tube, Connector, Pump Outlet			Immediately	$ 24.10
616	5304522084		Tube, Connector, Pump Inlet		Appelez-nous	-
617	5304522085		Tube, Drain, Inner, Air Break-base				$ 30.71
618	5304483441		Thermistor			Immediately	$ 48.83
619	5304519282		Thermostat				$ 99.60
620	5304519283		Seal, Sump				$ 19.38
621	5304519284		Tubing, Inlet				$ 12.05
704	5304519926		Clamp, Tube, In/outlet, Valve To Air Br		Appelez-nous	-
706	5304482390		Clamp, Hose, 14.9 X 1.8				$ 19.69
