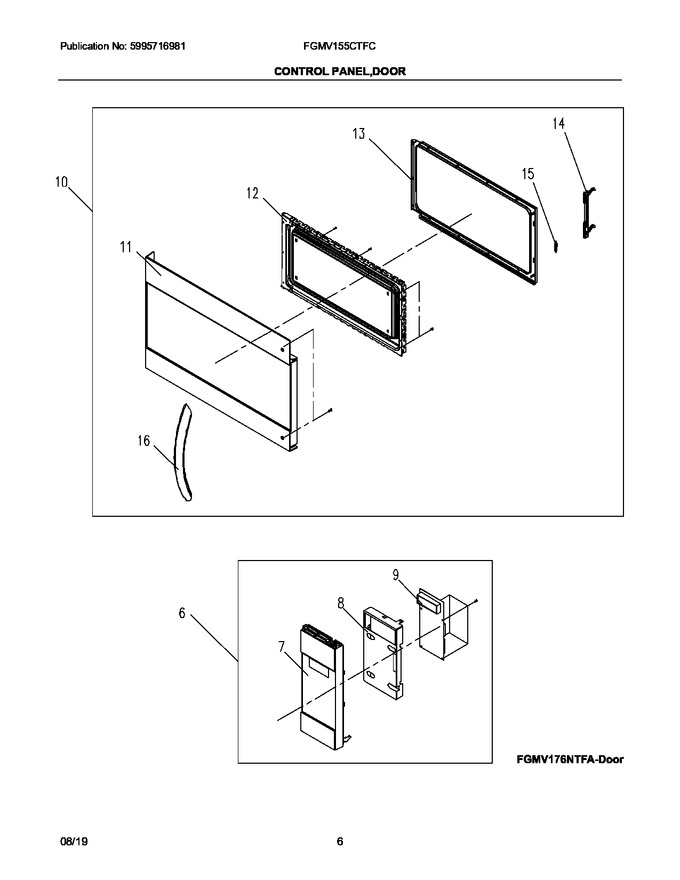

03 - Control Panel,door
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | 5304512518 | Control Panel, Assembly, Stainless |
|
$ 671.60 | |||||
| 7 | 5304512519 | Frame, Control Panel, Stainless |
|
- | |||||
| 8 | 5304509634 | Panel, Control Mount, Bracket |
|
$ 55.91 | |||||
| 9 | 5304512521 | Pc Board, Main, Control/power |
|
$ 471.51 | |||||
| 10 | 5304512520 | Door Assembly, Complete, Stainless |
|
$ 773.24 | |||||
| 11 | 5304512522 | Panel, Door, Stainless, Outer |
|
- | |||||
| 12 | 5304525104 | Panel, Inner Door, Black (Replaces: 5304478902) |
|
$ 202.47 | |||||
| 13 | 5304509640 | Frame, Choke Cover, Inner Door |
|
$ 56.23 | |||||
| 14 | 5304525298 | Latch, Door (Replaces: 5304509432) |
|
Immediately | $ 12.06 | ||||
| 15 | 5304521953 | Spring, Door Latch (Replaces: 5304509433) |
|
$ 8.03 | |||||
| 16 | 5304509641 | Handle, Door, Stainless |
|
$ 198.05 |
