View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Oven,cabinet

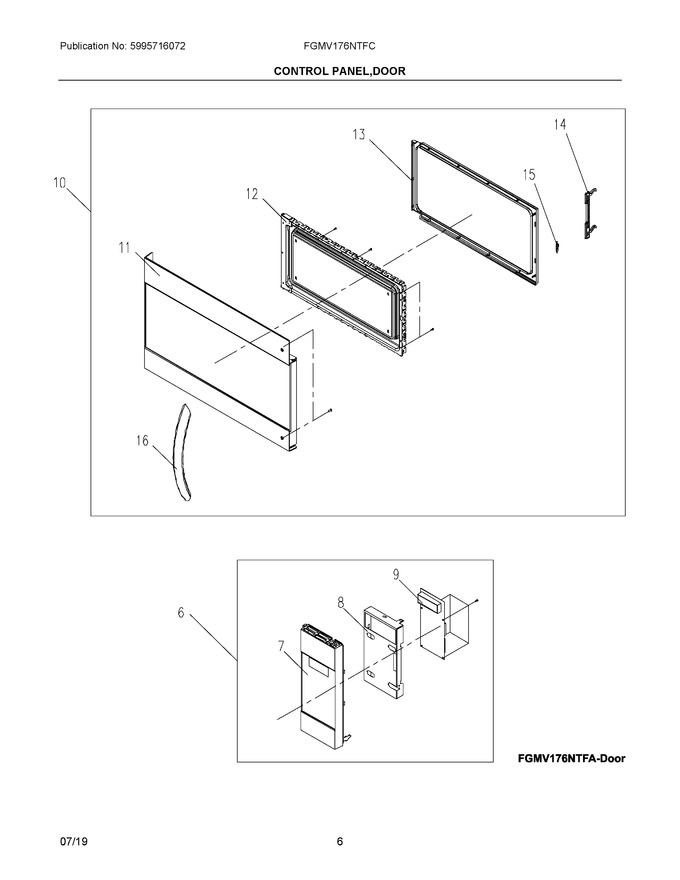

03 - Control Panel,door
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | 5304509661 | Control Assembly, Black |
|
$ 841.28 | |||||
| 7 | 5304509662 | Control Panel, W/membrane, Black |
|
$ 516.59 | |||||
| 8 | 5304509634 | Panel, Control Mount, Bracket |
|
$ 55.91 | |||||
| 9 | 5304509637 | Pc Board, Main, Control/power |
|
$ 421.71 | |||||
| 10 | 5304509638 | Door Assembly, Stainless |
|
$ 685.71 | |||||
| 11 | 5304509639 | Panel, Outer Door, Stainless |
|
$ 441.79 | |||||
| 12 | 5304494118 | Panel, Inner Door, Black |
|
$ 248.21 | |||||
| 13 | 5304509640 | Frame, Choke Cover, Inner Door |
|
$ 56.23 | |||||
| 14 | 5304525298 | Latch, Door (Replaces: 5304509432) |
|
Immediately | $ 12.06 | ||||
| 15 | 5304521953 | Spring, Door Latch (Replaces: 5304509433) |
|
$ 8.03 | |||||
| 16 | 5304509641 | Handle, Door, Stainless |
|
$ 198.05 |
