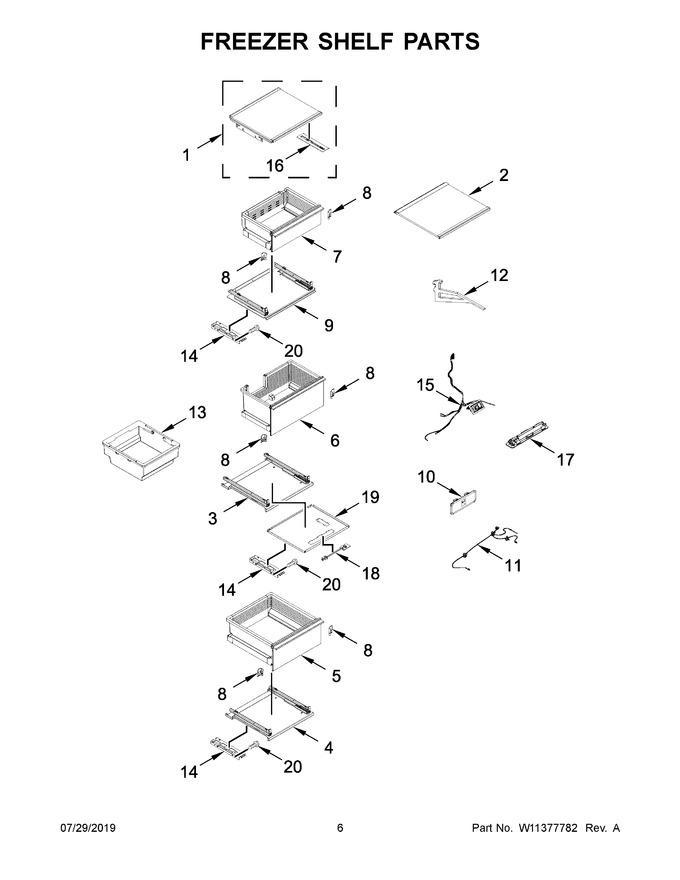

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11245156		Assembly, Deli Shelf   (Replaces: W10824594)				$ 461.49
2	W11245159		Assembly, Shelf   (Replaces: W11032682)				$ 292.91
3	W11245161		Assembly, Upper Crisper Slide Support   (Replaces: W10824120)		Appelez-nous	-
4	W11245184		Assembly, Lower Crisper Slide Support   (Replaces: W10821601)		Appelez-nous	-
5	W11245185		Assembly, Crisper   (Replaces: W11032271)		Appelez-nous	-
6	W11245187		Assembly, Ice Crisper   (Replaces: W10816829)			Immediately	$ 432.43
7	W11245190		Assembly, Deli   (Replaces: W10816762)		Appelez-nous	-
8	W11235126		Clip, Retainer (left Hand)   (Replaces: W10856559)		Appelez-nous	-
9	W11245199		Assembly, Deli Slide Support   (Replaces: W10824233)		Appelez-nous	-
10	W11234857		Housing, Crisper Thermistor   (Replaces: W11047771)				$ 246.30
11	W11234859		Harness, Crisper Led (includes Thermistor)   (Replaces: W10909590)				$ 152.41
12	W11305532		Sidearm, Shelf				$ 46.20
13	W11234515		Assembly, Ice Bin   (Replaces: W10875428)				$ 311.27
14	W11302039		Bracket, Support   (Replaces: W11045476)		Appelez-nous	-
15	W11299625		Harness, Mullion   (Replaces: W11238953)				$ 148.11
16	W11265008		Thermistor (includes Cover)			Immediately	$ 129.80
17	W11233384		Assemby, Light Strip   (Replaces: W10914639)			Immediately	$ 205.89
18	W11234552		Light, Led   (Replaces: W10903460)		Appelez-nous	-
19	W11300486		Plate, Crisper Support Led   (Replaces: W10902248)		Appelez-nous	-
20	W11247538		Screw   (Replaces: W10882791)			Immediately	$ 14.75
8A	W11235128		Clip, Retainer (right Hand)   (Replaces: W10856558)		Appelez-nous	-
