Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10804393 Tray, Ice Appelez-nous -
2 W11759044 Crisper, Freezer   (Replaces: W10415644) In-Stock Immediately $ 79.22

3 W10374117 Trim, Crisper Special Order $ 63.34

4 W10415649 Crisper, Bottom Freezer Special Order $ 153.20

5 W10805026 Shelf, Freezer   (Replaces: W10804404) Appelez-nous -
6 W10805027 Shelf, Freezer   (Replaces: W10804405) Appelez-nous -
7 W10745806 Slide, Drawer (left Hand) Appelez-nous -
7A W10745815 Slide, Drawer (right Hand) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

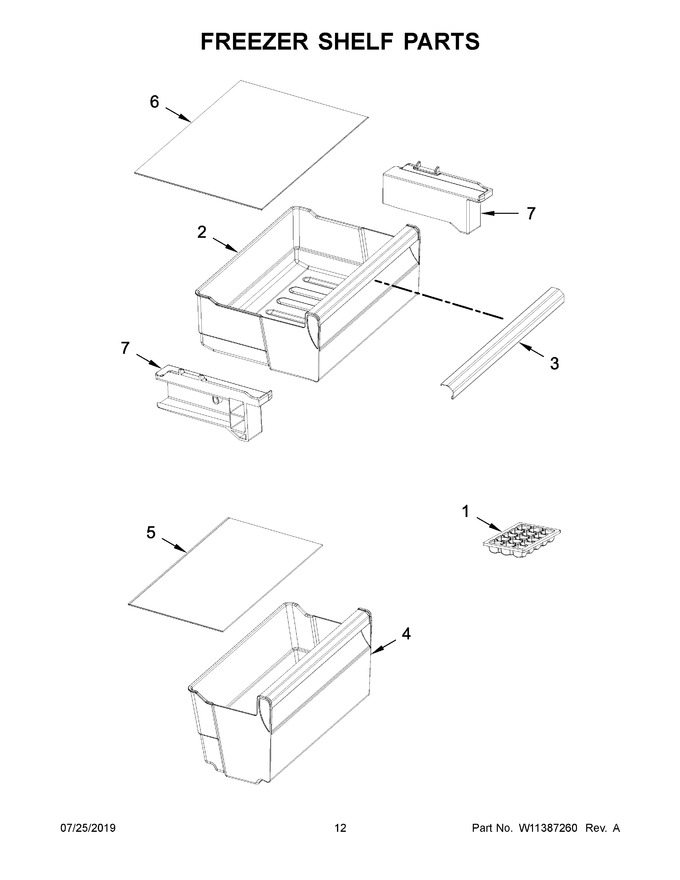

Diagram for JBBFX24NHX00
