Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11842830 Dishrack, Upper   (Replaces: W10199801) In-Stock Immediately $ 179.58

2 W11157083 Mount, Wheel   (Replaces: 8539128) In-Stock Immediately $ 27.93

3 WP3385089 Track Rack   (Replaces: 3385089) In-Stock Immediately $ 80.00

4 WP8565925 Stop Track   (Replaces: 8565920) In-Stock Immediately $ 6.87

5 WP8539113 Clip, No-flip   (Replaces: 8539113) Special Order $ 11.43

6 8268826 Clip, Cupshelf Special Order $ 22.17

7 WP8268828 Cupshelf, Small   (Replaces: 8268828) Special Order $ 135.89


    View Diagram in Separate Window     Print Icon   Print Part List

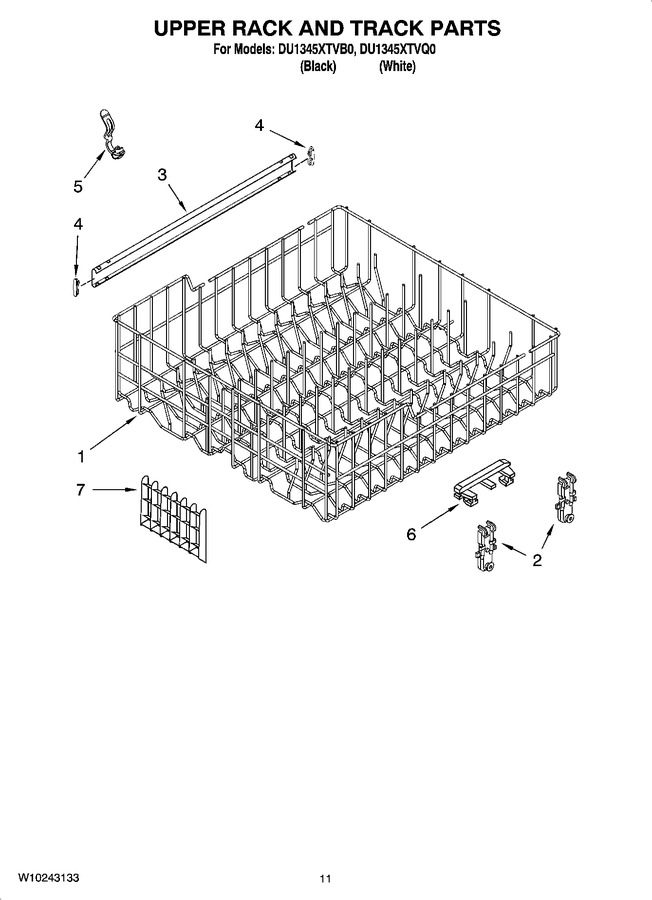

Diagram for DU1345XTVB0
