View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

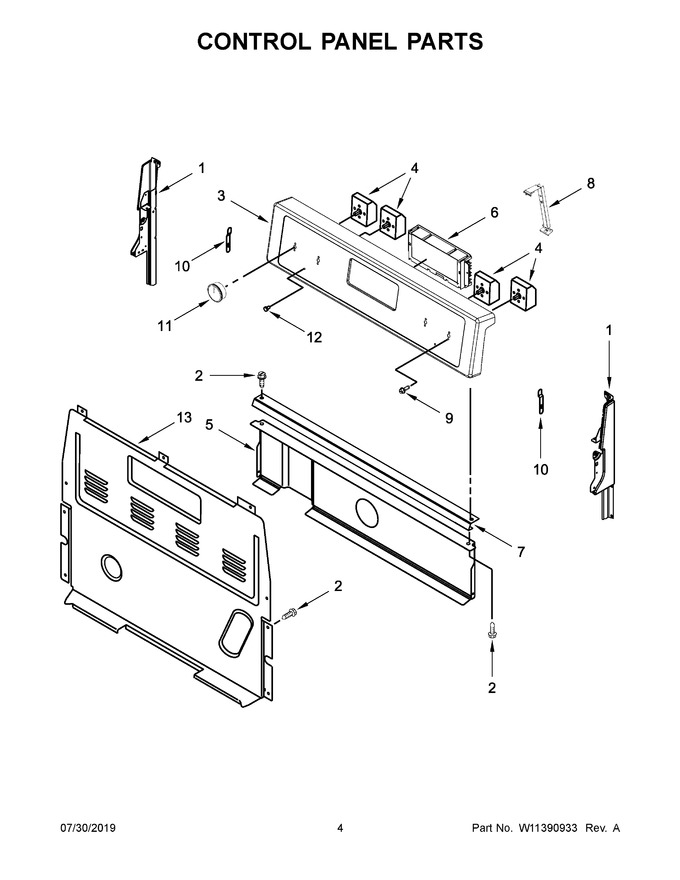

| 1 | W11219664 | Endcap (black (left)) (Replaces: W11130372) |
|
$ 153.83 | |||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 3 | W11135505 | Panel, Console (black) |
|
- | |||||
| 4 | 5500-287 | Switch, Infinite (green) (left Front, Right Rear) (Replaces: 3148953) |
|
Immediately | $ 52.39 | ||||
| 5 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 6 | W11122555 | Control, Electric (black) (Replaces: W10887901) |
|
$ 502.99 | |||||
| 7 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 8 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 84.81 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 10 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 11 | W10836470 | Knob (black) (Replaces: W10676213) |
|
Immediately | $ 38.09 | ||||
| 12 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 13 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11A | W10853029 | Knob (white) (Replaces: W10676214) |
|
Immediately | $ 38.27 | ||||
| 1A | W11219665 | Endcap (black (right)) (Replaces: W11130379) |
|
$ 45.17 | |||||
| 1B | W11219365 | Endcap (white (left)) (Replaces: W11130371) |
|
$ 42.45 | |||||
| 1C | W11219370 | Endcap (white (right)) (Replaces: W11130378) |
|
$ 60.83 | |||||
| 3A | W11135506 | Panel, Console (white) |
|
- | |||||
| 4A | 5500-287 | Switch, Infinite (left Rear, Right Front) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 6A | W11122557 | Control, Electric (white) (Replaces: W10887899) |
|
Immediately | $ 502.99 |
