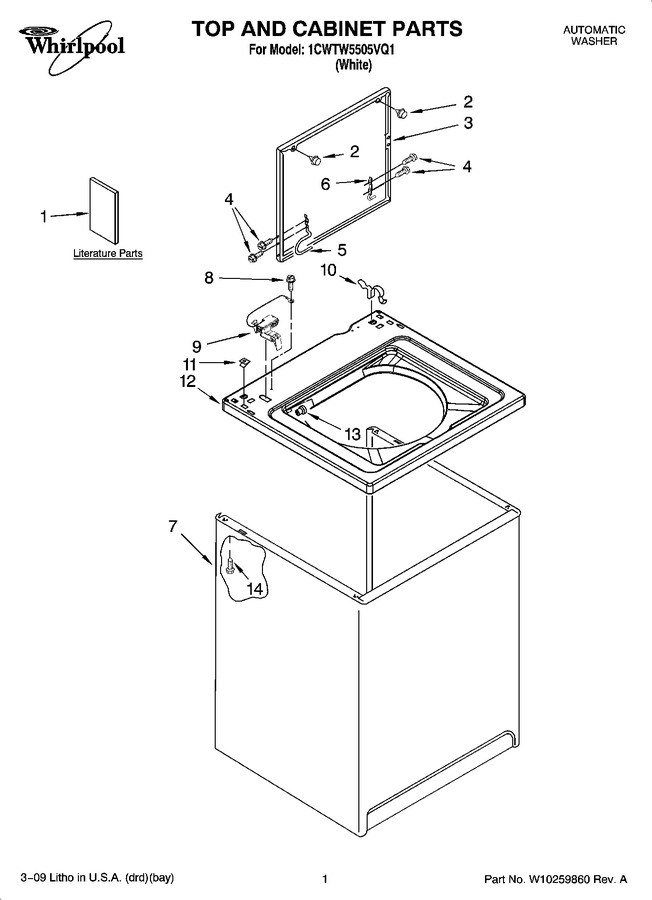

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10235704 | Feature Sheet |
|
- | |||||
| 1 | W10199994 | Wiring Diagram |
|
- | |||||
| 1 | W10235703 | Use & Care Guide |
|
- | |||||
| 1 | W10235702 | Installation Instructions |
|
- | |||||
| 2 | WP9724509 | Bumper, Lid (2) (Replaces: 9724509) |
|
Immediately | $ 7.93 | ||||
| 3 | WPW10193857 | Lid (Replaces: 8541774) |
|
$ 356.71 | |||||
| 4 | WPW10119828 | Screw, Lid Hinge Mounting (4) (Replaces: W10119828) |
|
Immediately | $ 7.19 | ||||
| 5 | W10225135 | Hinge, Lid (l.h.) |
|
$ 24.35 | |||||
| 6 | WP91770 | Hinge, Lid (r.h.) (Replaces: 91770) |
|
$ 27.45 | |||||
| 7 | 63128 | Cabinet |
|
- | |||||
| 8 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 6.95 | ||||
| 9 | WP8318084 | Switch, Lid (Replaces: 8318084) |
|
Immediately | $ 39.82 | ||||
| 10 | WP62780 | Clip, Top & Cabinet & Rear Panel (2) (Replaces: 62780) |
|
Immediately | $ 7.80 | ||||
| 11 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.39 | |||||
| 12 | 8541621 | Top |
|
- | |||||
| 13 | WP21258 | Bearing, Lid Hinge (2) (Replaces: 21258) |
|
Immediately | $ 7.63 | ||||
| 14 | W10165554 | Screw, 10-16 X 3/8 (4) |
|
$ 11.55 |
