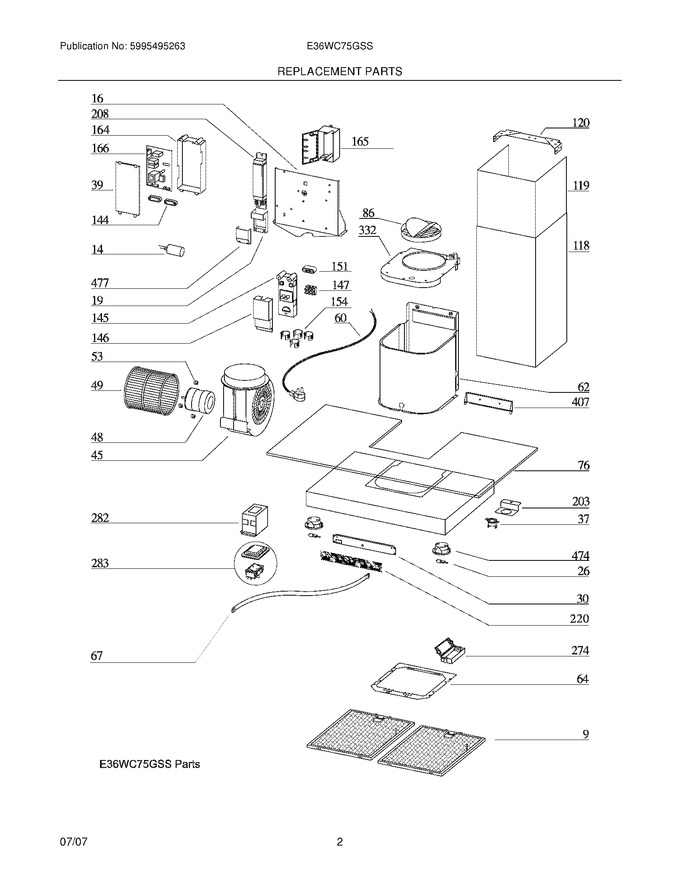

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Replacement Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | 5304454949 | Plate,mounting ,electric System |
|
- | |||||
| 19 | 5304454950 | Bracket,transformer ,protector |
|
$ 74.22 | |||||
| 26 | 5304454951 | Lamp,halogen ,20 W ,12 V |
|
$ 163.79 | |||||
| 30 | 5304462833 | Control Box,switch Board |
|
- | |||||
| 39 | 5304454954 | Cover,electrical Box |
|
- | |||||
| 45 | 5304454955 | Housing,blower Fan ,scroll |
|
- | |||||
| 53 | 5304462835 | Washer,motor Mount ,rubber |
|
- | |||||
| 62 | 5304454960 | Housing,blower Assembly |
|
- | |||||
| 64 | 5304462837 | Panel,filter Support |
|
- | |||||
| 118 | 5304462851 | Chimney,duct Cover ,lower Flue |
|
- | |||||
| 119 | 5304462852 | Chimney,duct Cover ,upper Flue |
|
- | |||||
| 120 | 5304454981 | Bracket,chimney Mount ,top Flue |
|
$ 288.63 | |||||
| 144 | 5304454982 | Clamp,wiring |
|
- | |||||
| 145 | 5304454983 | Terminal Box,wiring |
|
- | |||||
| 146 | 5304454985 | Cover,terminal Box |
|
- | |||||
| 147 | 5304454986 | Clamp,wiring Junction |
|
- | |||||
| 151 | 5304454987 | Wire Stop,terminal Box |
|
- | |||||
| 154 | 5304454988 | Clamp,power Cord |
|
- | |||||
| 164 | 5304455947 | Electrical Box |
|
- | |||||
| 165 | 5304454989 | Electrical Box,with Cover |
|
- | |||||
| 203 | 5304462845 | Bracket,thermostat |
|
- | |||||
| 274 | 5304455009 | Fuse Box |
|
- | |||||
| 282 | 5304462843 | Support,main Switch |
|
- | |||||
| 332 | 5304454996 | Cover,blower ,duct Connector |
|
- | |||||
| 407 | 5304454997 | Bracket,blower Support |
|
$ 115.27 | |||||
| 477 | 5304455950 | Cover,terminal ,transformer |
|
- | |||||
| F14 | 5304454900 | Capacitor,motor |
|
- | |||||
| F166 | 5304462841 | Control Board,printed Circuit |
|
$ 454.91 | |||||
| F208 | 5304454992 | Transformer |
|
$ 362.78 | |||||
| F220 | 5304462840 | Switch Assembly,controls |
|
$ 821.25 | |||||
| F283 | 5304462842 | Switch Assembly,main |
|
- | |||||
| F37 | 5304455734 | Thermostat,heat Sentry |
|
$ 140.70 | |||||
| F474 | 5304454999 | Housing,lamp Receptacle |
|
- | |||||
| F48 | 5304462834 | Motor,blower |
|
$ 364.44 | |||||
| F49 | 5304455031 | Blower Wheel,fan |
|
$ 174.56 | |||||
| F60 | 5304454959 | Power Cord,electric |
|
- | |||||
| F67 | 5304462838 | Wiring Harness,control Panel |
|
- | |||||
| F76 | 5304462850 | Canopy,hood ,glass |
|
- | |||||
| F86 | 5304454974 | Discharge Collar,damper |
|
$ 116.42 | |||||
| F9 | 5304455733 | Filter,grease ,aluminum |
|
$ 115.52 | |||||
| NI | 5304455001 | Installation Kit,mtg. Hardware |
|
$ 161.95 | |||||
| NI | 5304455332 | Fuse,5 X 20 Mm ,4 Amp ,125 V |
|
$ 87.23 | |||||
| NI | 5304455333 | Fuse Holder |
|
- |
