01 - Cover

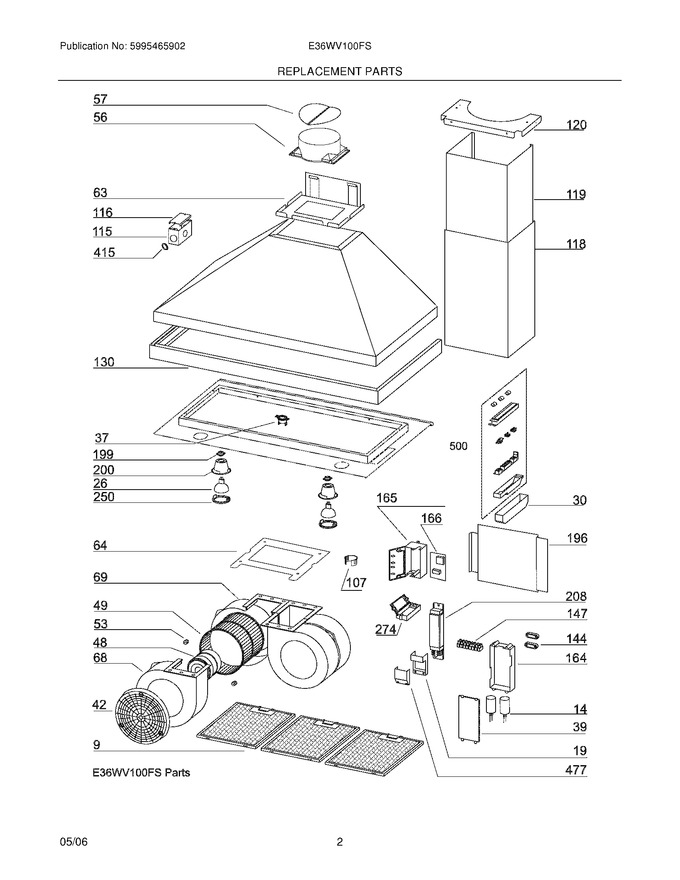

03 - Replacement Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 19 | 5304454950 | Bracket,transformer ,protector |
|
$ 74.22 | |||||
| 26 | 5304455738 | Lamp,halogen |
|
$ 173.28 | |||||
| 30 | 5304455739 | Cover,switch Assembly |
|
- | |||||
| 39 | 5304454954 | Cover,electrical Box |
|
- | |||||
| 42 | 5304455741 | Grille,filter Support |
|
- | |||||
| 53 | 5304454958 | Washer,motor Mount ,rubber |
|
$ 63.89 | |||||
| 56 | 5304455743 | Connector,damper/duct |
|
- | |||||
| 57 | 5304455744 | Damper,flap |
|
- | |||||
| 63 | 5304455745 | Bracket,hood ,upper |
|
- | |||||
| 64 | 5304455746 | Bracket,hood ,lower |
|
- | |||||
| 68 | 5304455747 | Housing,blower ,right Side |
|
- | |||||
| 69 | 5304455748 | Housing,blower ,left Side |
|
- | |||||
| 107 | 5304455012 | Clamp,cable Stop |
|
- | |||||
| 115 | 5304455749 | Wiring Box |
|
- | |||||
| 116 | 5304455018 | Cover,wiring Box |
|
$ 85.74 | |||||
| 118 | 5304455750 | Chimney,duct Cover ,lower Flue |
|
- | |||||
| 119 | 5304455751 | Chimney,duct Cover ,upper Flue |
|
- | |||||
| 120 | 5304455752 | Bracket,chimney Mount ,top Flue |
|
$ 232.42 | |||||
| 130 | 5304455753 | Trim,hood ,bottom |
|
- | |||||
| 144 | 5304454982 | Clamp,wiring |
|
- | |||||
| 147 | 5304455754 | Clamp,wiring ,junction |
|
- | |||||
| 164 | 5304455947 | Electrical Box,capacitor |
|
- | |||||
| 165 | 5304454989 | Electrical Box |
|
- | |||||
| 196 | 5304455755 | Bracket,support ,electrical Box |
|
- | |||||
| 199 | 5304455756 | Insulator,ceramic ,lamp Housing |
|
- | |||||
| 200 | 5304455757 | Housing,lamp Receptacle |
|
- | |||||
| 250 | 5304455049 | Ring Nut,lamp Retainer |
|
$ 174.52 | |||||
| 274 | 5304455009 | Fuse Box |
|
- | |||||
| 415 | 5304455949 | Bushing,wiring Box |
|
- | |||||
| 477 | 5304455950 | Cover,terminal ,transformer |
|
- | |||||
| F14 | 5304454900 | Capacitor,motor |
|
- | |||||
| F166 | 5304455948 | Control Board,printed Circuit |
|
- | |||||
| F208 | 5304454992 | Transformer |
|
$ 362.78 | |||||
| F37 | 5304455740 | Thermostat,heat Sentry |
|
- | |||||
| F48 | 5304455742 | Motor,blower |
|
- | |||||
| F49 | 5304455031 | Blower Wheel,fan |
|
$ 174.56 | |||||
| F500 | 5304455952 | Switch Assembly,controls |
|
- | |||||
| F9 | 5304455737 | Filter,grease ,aluminum |
|
- | |||||
| NI | 5304455332 | Fuse,5 X 20 Mm ,4 Amp ,125 V |
|
$ 87.23 | |||||
| NI | 5304455333 | Fuse Holder |
|
- | |||||
| NI | 5304455951 | Installation Kit,mtg. Hardware |
|
- |
