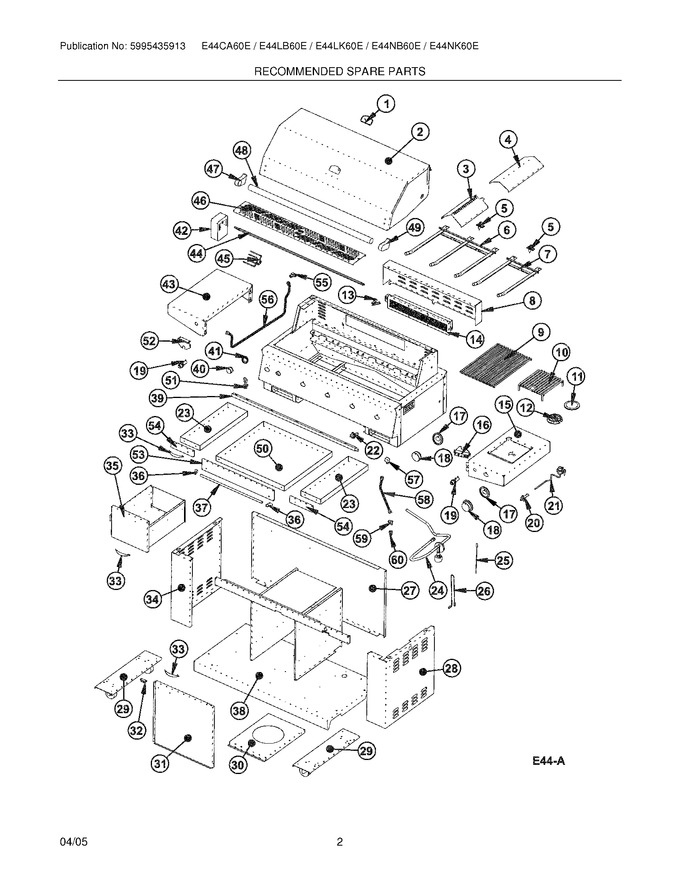

01 - Cover


03 - Recommended Spare Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304444400		Grate,side Burner				$ 234.27
11	5304444525		Cap,burner ,side				$ 84.24
15	5304444527		Shelf,burner ,side		Appelez-nous	-
17	5304444406		Bezel,knob				$ 51.03
18	5304444529		Knob,burner				$ 84.00
19	5304444404		Housing,igniter Battery		Appelez-nous	-
27	5304444535		Panel,cart ,back		Appelez-nous	-
28	5304444536		Panel,cart ,right Side		Appelez-nous	-
29	5304444537		Channel,wheel ,swivel		Appelez-nous	-
30	5304444538		Tray,gas Tank		Appelez-nous	-
31	5304444539		Door,cart		Appelez-nous	-
32	5304444391		Magnet,door				$ 52.55
33	5304444540		Handle,drawer/drip Pan		Appelez-nous	-
34	5304444541		Panel,cart ,left Side		Appelez-nous	-
35	5304444542		Drawer,cart ,storage		Appelez-nous	-
38	5304444545		Base,cart		Appelez-nous	-
43	5304444549		Shelf,left Side		Appelez-nous	-
F12	5304444526		Head,burner ,side				$ 125.54
F16	5304444528		Igniter,2-pole ,ground ,with Bracket		Appelez-nous	-
F20	5304444412		Valve,burner ,side ,lp				$ 148.94
F20	5304444413		Valve,burner ,side ,ng		Appelez-nous	-
F21	5304444531		Base,orifice ,side Burner ,ng		Appelez-nous	-
F21	5304444530		Base,orifice ,side Burner ,lp				$ 124.43
F25	5304444431		Wire,igniter ,positive				$ 58.70
F26	5304444432		Wire,igniter ,negative				$ 62.37
NI	5304444443		Nut,door ,bottom Pivot		Appelez-nous	-
NI	5304444444		Screw,door ,bottom Pivot		Appelez-nous	-
NI	5304444445		Screw,bezel To Valve				$ 8.09
NI	5304444447		Screw,self-tapping				$ 11.03
NI	5304444558		Screw,handle End ,door/drawer/pan				$ 2.54
NI	5304444534		Tubing,ng ,side Burner		Appelez-nous	-
NI	5304444563		Wire,igniter ,side Burner		Appelez-nous	-
NI	5304444442		Bolt,wheel & Cart		Appelez-nous	-
