SELECT A DIAGRAM

01 - Cover

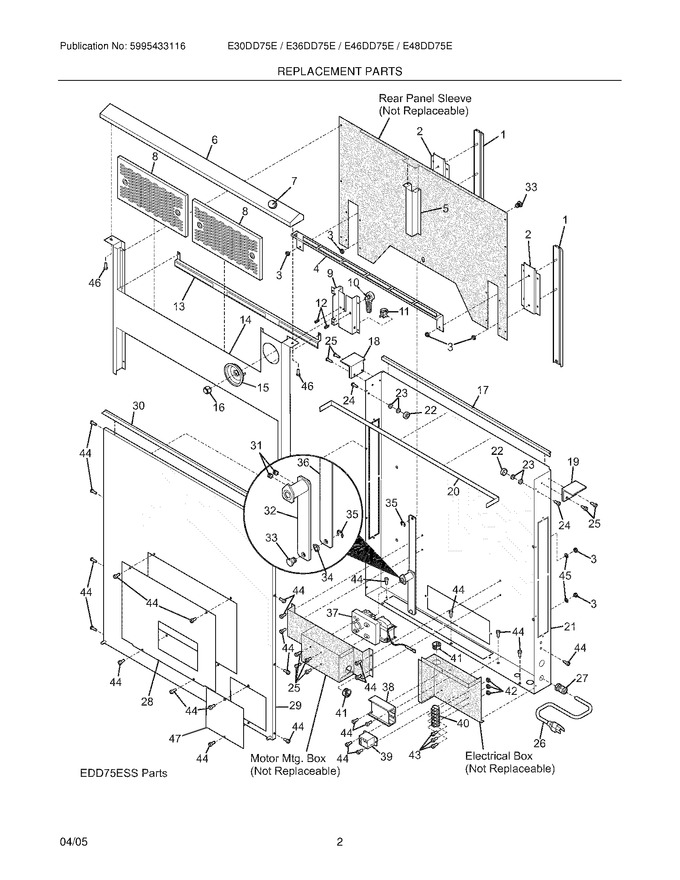

03 - Replacement Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304446252		Slide,raise Vent ,(2)		Appelez-nous	-
2	5304446223		Bracket,slide Mtg. ,(2)		Appelez-nous	-
3	5304446015		Nut,hex Keps ,no.8-32 ,(9)		Appelez-nous	-
4	5304446266		Bracket,filter Retainer ,46``/48``		Appelez-nous	-
5	5304446220		Support,filter		Appelez-nous	-
6	5304446233		Top Cap,weldment ,46``		Appelez-nous	-
7	5304446292		Switch,assembly ,w/harness				$ 386.74
8	5304446259		Filter Assy.,46``/48`` ,(2)		Appelez-nous	-
9	5304446234		Bracket,potentiometer		Appelez-nous	-
10	5304446247		Potentiometer Assy.,w/harness				$ 158.39
11	5304446275		Tie,push Mount ,(3) ,locking		Appelez-nous	-
12	5304446291		Palnut,tinerman ,(2)		Appelez-nous	-
13	5304446221		Spring Bracket Assy,w/tape ,46``/48``		Appelez-nous	-
14	5304446238		Sleeve,46``/48`` ,front		Appelez-nous	-
15	5304446293		Bezel,control Knob				$ 152.27
16	5304446294		Knob,control				$ 54.02
17	5304446270		Trim,rear Plenum ,46``/48``		Appelez-nous	-
18	5304446256		Angle,rear Plenum ,30``/36``/46`` ,lh		Appelez-nous	-
19	5304446255		Angle,rear Plenum ,30``/36``/46`` ,rh		Appelez-nous	-
20	5304446246		Wiper,felt ,46``/48``		Appelez-nous	-
21	5304446227		Weldment,plenum ,46``/48`` ,rear		Appelez-nous	-
22	5304446262		Roller,nylon ,(2)		Appelez-nous	-
23	5304446249		Spacer,nylon ,(4)		Appelez-nous	-
24	5304446287		Screw,phil Pan Hd ,no.8-32 X 3/4 ,(2)		Appelez-nous	-
25	5304446272		Screw,phil Hd ,no.8-32 X 1/4 ,(8)		Appelez-nous	-
26	5304446261		Cord,power Supply		Appelez-nous	-
27	5304446288		Strain Releif		Appelez-nous	-
28	5304446237		Panel,access ,drive Motor		Appelez-nous	-
29	5304446229		Weldment,plenum ,46``/48`` ,front		Appelez-nous	-
30	5304446243		Seal,countertop ,46``/48``		Appelez-nous	-
31	5304446280		Screw,set ,1/4-28 Unf ,x 1/4 Cup Point ,(2)				$ 7.30
32	5304446251		Drive Arm				$ 350.49
33	5304446267		Stud,drive Arm ,(2)		Appelez-nous	-
34	5304446285		Spring Washer,drive Arm		Appelez-nous	-
35	5304446283		C-clip,(2)				$ 12.73
36	5304446250		Raise Arm		Appelez-nous	-
37	5304446263		Motor Assy.,drive ,w/switch				$ 459.45
38	5304446248		Control,ac Phase				$ 328.93
39	5304446257		Relay,10a				$ 139.02
40	5304446933		Strip,terminal		Appelez-nous	-
41	5304446279		Bushing,heyco ,sb-875-11 ,(2)		Appelez-nous	-
42	5304446290		Nut,hex Keps ,no.4-40 ,zinc ,(3)		Appelez-nous	-
43	5304446289		Screw,phil Pan Hd ,no.4-40 X .625 ,(3)		Appelez-nous	-
44	5304446271		Screw,phil Pan Hd ,no.8 X 1/4 ,(34)		Appelez-nous	-
45	5304446273		Washer,sae ,no.10 ,(4)		Appelez-nous	-
46	5304446284		Screw,phil Flat Hd ,no.8-32 X 1/4 ,(2)		Appelez-nous	-
47	5304446979		Cover,electrical Box		Appelez-nous	-
NI	5304446278		· Nut,hex Keps ,1/4-20 ,(2)		Appelez-nous	-
NI	5304446286		· Washer,flat ,1/4-20 ,(2)		Appelez-nous	-
NI	5304446295		Harness,red		Appelez-nous	-
NI	5304446298		Harness,blue		Appelez-nous	-
NI	5304446302		Harness,black		Appelez-nous	-
NI	5304446282		Tie,cable ,4054 Rt 350 ,(1)		Appelez-nous	-
NI	5304446303		Harness,phase Control ,to Relay		Appelez-nous	-
NI	5304446304		Jumper Harness,phase Control ,to Relay		Appelez-nous	-
NI	5304446300		Harness,realy-pwr Input		Appelez-nous	-
NI	5304446301		Harness,realy-neutral				$ 21.30
NI	5304446297		Harness,switch-relay		Appelez-nous	-
NI	5304446299		Harness,ground Terminal		Appelez-nous	-
NI	5304446296		Harness,main		Appelez-nous	-
NI	5304446281		Wire Nut,yellow ,(3)		Appelez-nous	-
NI	5304446222		Transition Duct,kit Assembly		Appelez-nous	-
NI	5304446235		· Leg,support ,lh		Appelez-nous	-
NI	5304446236		· Leg,support ,rh		Appelez-nous	-
NI	5304446276		· Wire Nut,orange ,(3)		Appelez-nous	-
NI	5304446274		· Screw,phil Trs Hd ,no.10 X 1/2 ,(2)		Appelez-nous	-
NI	5304446277		· Screw,phil Flat Hd ,no.14 X 1/2 ,(4) ,wood		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
