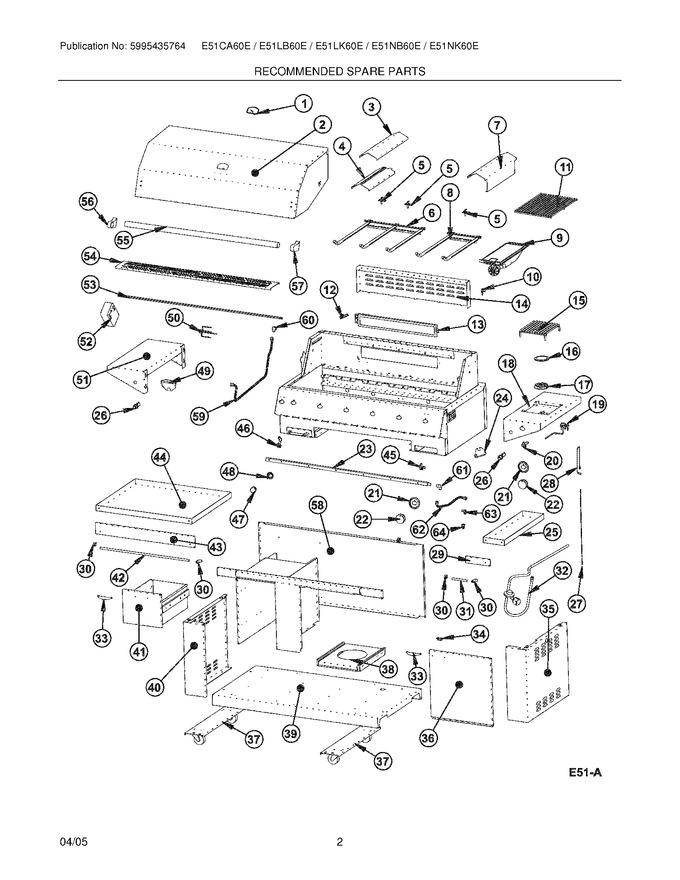

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304444392		Guage,temperature				$ 151.38
2	5304444629		Hood,grill		Appelez-nous	-
3	5304444630		Flavor Grid,burner Cover ,top ,angle				$ 252.09
4	5304444631		Flavor Grid,burner Cover ,bottom ,angle				$ 256.96
7	5304444633		Flavor Grid,burner Cover ,top-right Side,angle		Appelez-nous	-
11	5304444637		Grate,burner ,main		Appelez-nous	-
12	5304444393		Electrode,infrared Burner ,back				$ 130.57
14	5304444639		Cover,infrared Burner		Appelez-nous	-
15	5304444400		Grate,side Burner				$ 234.27
16	5304444525		Cap,burner ,side				$ 84.24
17	5304444526		Head,burner ,side				$ 125.54
18	5304444640		Shelf,burner ,side		Appelez-nous	-
19	5304444530		Base,orifice ,side Burner ,lp				$ 124.43
20	5304444412		Valve,burner ,side ,lp				$ 148.94
21	5304444406		Bezel,knob				$ 51.03
22	5304444529		Knob,burner				$ 84.00
25	5304444643		Tray,drip Pan		Appelez-nous	-
26	5304444404		Housing,igniter Battery		Appelez-nous	-
29	5304444644		Panel,drip Pan ,front		Appelez-nous	-
30	5304444543		Handle End,warming Tray		Appelez-nous	-
31	5304444645		Handle,drip Pan		Appelez-nous	-
33	5304444540		Handle,drawer/drip Pan		Appelez-nous	-
34	5304444391		Magnet,door				$ 52.55
35	5304444646		Panel,cart ,right Side		Appelez-nous	-
36	5304444647		Door,cart		Appelez-nous	-
37	5304444648		Channel,wheel ,swivel		Appelez-nous	-
38	5304444538		Tray,gas Tank		Appelez-nous	-
39	5304444649		Base,cart		Appelez-nous	-
40	5304444650		Panel,cart ,left Side		Appelez-nous	-
41	5304444542		Drawer,cart ,storage		Appelez-nous	-
42	5304444651		Handle,warming Tray				$ 237.27
43	5304444556		Panel,warming Drawer ,front				$ 199.04
44	5304444652		Drawer,warming		Appelez-nous	-
45	5304444435		Valve,burner ,main/side ,lp		Appelez-nous	-
46	5304444433		Valve,ir Burner ,back ,lp				$ 50.53
47	5304444547		Knob,infrared Burner		Appelez-nous	-
48	5304444429		Bezel,infrared Knob				$ 39.90
50	5304444551		Fork,rotisserie				$ 111.63
51	5304444653		Shelf,side		Appelez-nous	-
53	5304444654		Spit,rotisserie		Appelez-nous	-
54	5304444655		Shelf,warming Rack				$ 313.87
55	5304444656		Handle,hood ,47 Inch		Appelez-nous	-
56	5304444388		Handle End,hood ,left				$ 48.51
57	5304444390		Handle End,hood ,right		Appelez-nous	-
58	5304444657		Panel,cart ,back		Appelez-nous	-
59	5304447625		Elbow,lp Fitting ,infrared Burner ,rear		Appelez-nous	-
61	5304447621		Elbow,gas Fitting ,manifold/hose		Appelez-nous	-
F10	5304444636		Electrode,infrared Burner ,bottom				$ 126.26
F13	5304444638		Burner,infrared ,back		Appelez-nous	-
F23	5304444641		Manifold		Appelez-nous	-
F24	5304444642		Igniter,2-pole ,no Ground ,with Bracket		Appelez-nous	-
F27	5304444431		Wire,igniter ,positive				$ 58.70
F28	5304444432		Wire,igniter ,negative				$ 62.37
F32	5304444533		Regulator,lp Gas ,dual Hose		Appelez-nous	-
F49	5304444555		Igniter,4-pole ,no Ground ,with Bracket		Appelez-nous	-
F5	5304444439		Electrode,main Burner				$ 148.05
F52	5304444548		Motor,rotisserie		Appelez-nous	-
F6	5304444632		Burner,main ,3 Cell				$ 485.79
F60	5304447620		Hose,gas ,infrared Burner ,rear		Appelez-nous	-
F62	5304447622		Hose,gas ,10`` ,main Supply		Appelez-nous	-
F63	5304447623		Elbow,main Connection		Appelez-nous	-
F64	5304447624		Fitting,main Connection		Appelez-nous	-
F8	5304444634		Burner,main ,2 Cell				$ 493.40
F9	5304444635		Burner,infrared ,bottom				$ 470.30
NI	5304444659		Wire,igniter ,main Burner ,center				$ 46.41
NI	5304444660		Wire,igniter ,main Burner ,left				$ 43.16
NI	5304444661		Wire,igniter ,infrared Burner		Appelez-nous	-
NI	5304444662		Wire,igniter ,main Burner		Appelez-nous	-
NI	5304444663		Wire,igniter ,side Burner		Appelez-nous	-
NI	5304444441		Bolt,valve/manifold		Appelez-nous	-
NI	5304444442		Bolt,wheel & Cart		Appelez-nous	-
NI	5304444443		Nut,door ,bottom Pivot		Appelez-nous	-
NI	5304444444		Screw,door ,bottom Pivot		Appelez-nous	-
NI	5304444445		Screw,bezel To Valve				$ 8.09
NI	5304444446		Screw,hood Handle End		Appelez-nous	-
NI	5304444447		Screw,self-tapping				$ 11.03
NI	5304444558		Screw,handle End ,door/drawer/pan				$ 2.54
NI	5304444658		Wire,igniter ,bottom ,infrared				$ 93.50
