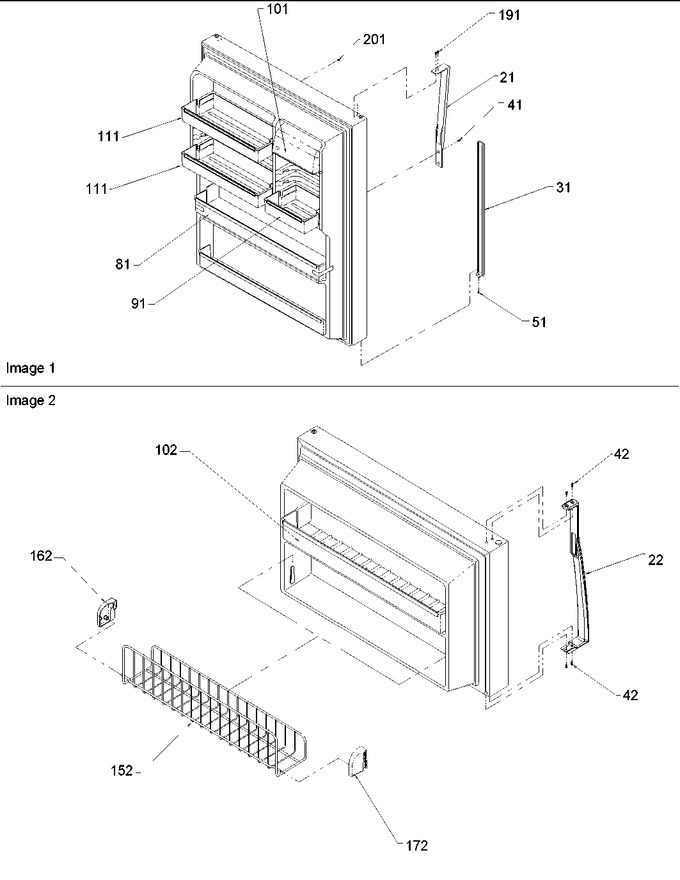

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 21 | 12497501C | Handle,ref Dr(bisque) |
|
- | |||||
| 22 | 12497408C | Handle Freezer Bisque |
|
- | |||||
| 31 | 12508102C | Trim,handle(bisque) |
|
- | |||||
| 41 | R9800670 | Screw, Mounting (Replaces: M0223230) |
|
$ 9.38 | |||||
| 42 | M0221744 | Screw-sm Shldr |
|
- | |||||
| 51 | M0221756 | Screw, Small |
|
- | |||||
| 81 | 10183126 | Retainer,ref Door |
|
- | |||||
| 91 | 10502916 | Bucket, Ref Door |
|
- | |||||
| 101 | 10423418 | Door, Dairy |
|
- | |||||
| 102 | 10419020 | Retainer,ref/fz Dr |
|
- | |||||
| 111 | 10416916 | Shelf, Ref Door |
|
- | |||||
| 152 | 12503501 | Basket, Tilt Out |
|
- | |||||
| 162 | 12503401 | End Cap, Tilt Basket |
|
- | |||||
| 172 | 12503402 | End Cap, Tilt Basket |
|
- | |||||
| 191 | M0221744 | Screw-sm Shldr |
|
- | |||||
| 201 | 12246604 | Plug, Handle Hole (bsq) |
|
- | |||||
| NI | Y12528501 | Nameplate (amana Plus) |
|
Immediately | $ 59.75 |
