SELECT A DIAGRAM

01 - Cover

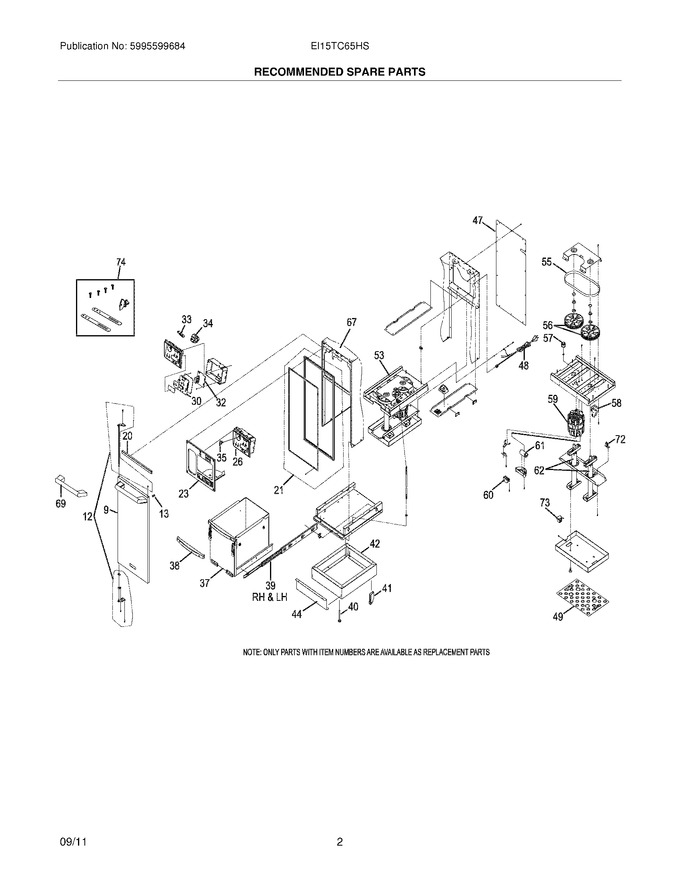

03 - Recomended Spare Parts


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	5304469072		Door Assy,electrolux ,w/handle				$ 495.67
12	5304469073		Hinge Assembly,with Pin,cap				$ 117.81
20	5304469081		Cover,trim ,plastic ,top		Appelez-nous	-
23	5304469084		Frame,control Panel ,auto		Appelez-nous	-
35	5304469092		Key,lock Switch				$ 63.29
38	5304469095		Handle,bucket		Appelez-nous	-
39	5304469096		Slide Assembly,bucket ,lh/rh				$ 154.52
40	5304469097		Leveling Leg		Appelez-nous	-
41	5304469098		Roller,leveling		Appelez-nous	-
42	5304470119		Base,cabinet Stand		Appelez-nous	-
44	5304469100		Toeplate,black		Appelez-nous	-
47	5304469102		Panel,back		Appelez-nous	-
67	5304470120		Cabinet,housing		Appelez-nous	-
69	5304470121		Handle,electrolux		Appelez-nous	-
73	5304470125		Latch,compactor Plate		Appelez-nous	-
74	5304484957		Mounting Kit,assembly ,w/hardware-key				$ 96.12
F13	5304469080		Actuator,interlock				$ 70.67
F21	5304469082		Gasket Assy,door ,w/frame,screws		Appelez-nous	-
F26	5304469086		Display Module,w/safety Switch		Appelez-nous	-
F30	5304469088		Pc Board,main Control				$ 393.33
F32	5304469089		Transformer,ac/dc				$ 289.48
F33	5304469090		Switch,interlock		Appelez-nous	-
F34	5304469091		Touch Control,key Pad				$ 128.08
F37	5304469094		Bucket Assy,37 No. ,broan ,s99526870 ,w/latch,handle		Appelez-nous	-
F48	5304469103		Power Cord,electric		Appelez-nous	-
F49	5304469104		Plate,compaction ,stainless		Appelez-nous	-
F53	5304469201		Power Unit,assembly Assy		Appelez-nous	-
F55	5304469203		Belt,drive				$ 240.75
F56	5304469313		Pulley,drive Wheel ,large		Appelez-nous	-
F57	5304469314		Pulley,drive Wheel ,small		Appelez-nous	-
F58	5304469315		Switch,limit ,upper				$ 155.66
F59	5304469316		Motor,w/capacitor ,switch				$ 307.68
F60	5304469317		Switch,centrifugal		Appelez-nous	-
F61	5304469318		Capacitor,motor		Appelez-nous	-
F62	5304469319		Ram Screw,assembly		Appelez-nous	-
F72	5304470124		Switch,limit ,lower		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
