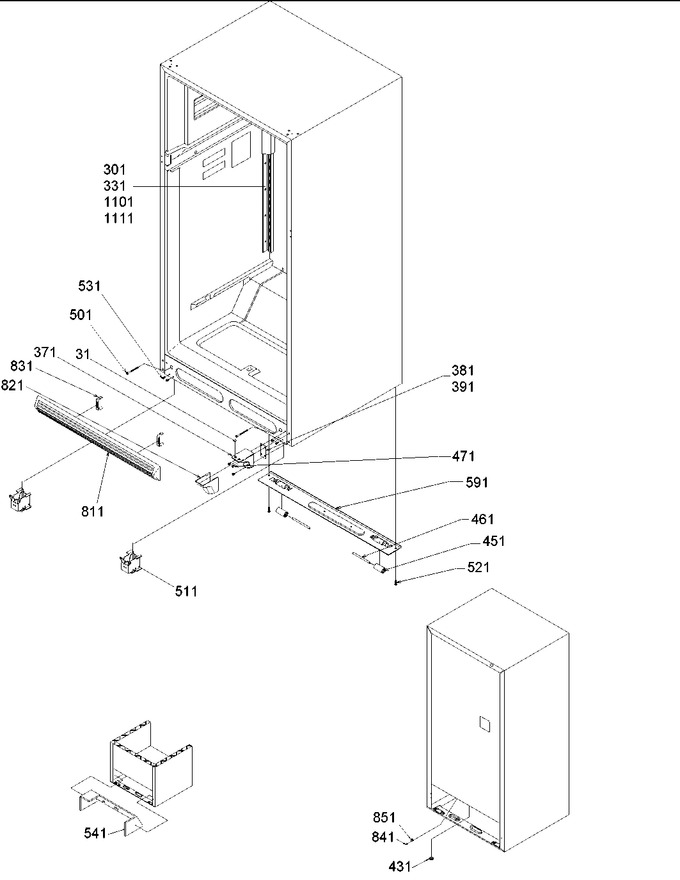

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 301 | 67006425 | Screw, Sm (Replaces: M0238642) |
|
Immediately | $ 6.95 | ||||
| 331 | 12435701 | Ladder, Side (l/r) |
|
- | |||||
| 371 | 10585509 | Hinge,(b)btm-e Ct |
|
- | |||||
| 381 | 10447906 | Shim Hinge |
|
- | |||||
| 391 | 10447905 | Shim, Hinge (btm) |
|
- | |||||
| 431 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 451 | 10450701 | Roller, Rear |
|
$ 28.91 | |||||
| 461 | 10450901 | Axle, Roller |
|
- | |||||
| 471 | WP67006715 | Screw, Sm (Replaces: M0241508) |
|
$ 7.19 | |||||
| 501 | M0204336 | Screw, Adj Roller |
|
- | |||||
| 511 | 12452601Q | Assy, Roller Bracket |
|
- | |||||
| 521 | M0260242 | Screw, Tf |
|
- | |||||
| 531 | W11573574 | Screw, Sm (Replaces: M0211031) |
|
Immediately | $ 14.02 | ||||
| 541 | 12403610 | Insulation, Sound |
|
- | |||||
| 591 | 10427112 | Brace |
|
- | |||||
| 811 | 10474801 | Grille, Toe (black) |
|
- | |||||
| 821 | 10584801 | Cover, Lower Hinge (ebony) |
|
- | |||||
| 831 | 10551502 | Clip, Toe Grille |
|
$ 5.84 | |||||
| 841 | M0227217 | Screw, Sm |
|
- | |||||
| 851 | 10547101 | Clip, Tube |
|
- | |||||
| 1101 | 12435801 | Ladder, Center |
|
- | |||||
| 1111 | M0238636 | Screw-sm |
|
- |
