SELECT A DIAGRAM

01 - Frame And Console


02 - Inner Door

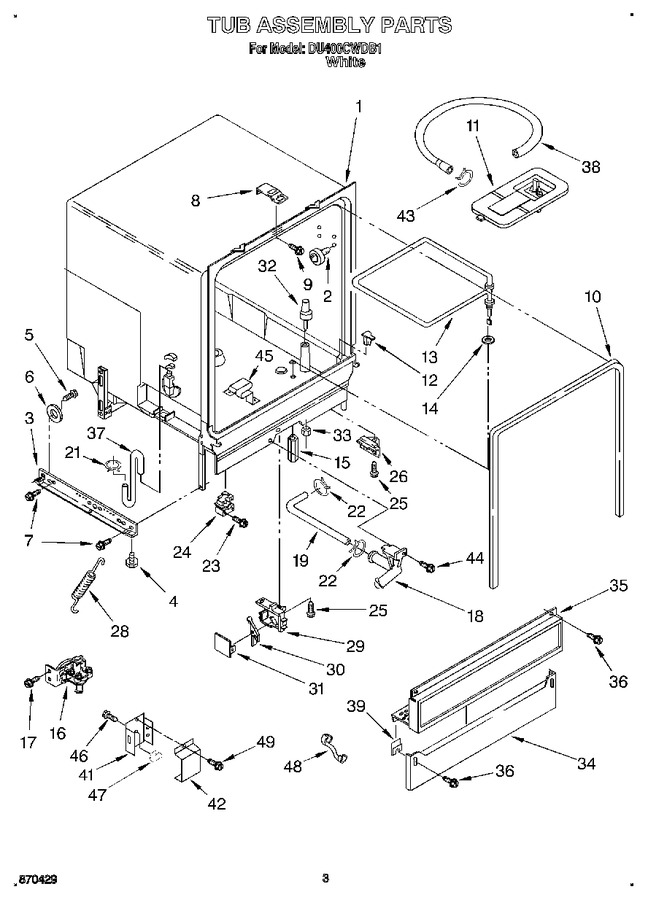

03 - Tub Assembly


04 - Pump And Spray Arm


05 - Pump And Motor


06 - Dishrack


07 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3375129		Tub Assembly		Appelez-nous	-
2	3369078		Tub, Wheel Assembly (8)		Appelez-nous	-
3	3368932		Runner (2)		Appelez-nous	-
4	8193716		Leveler (2)   (Replaces: 3374849)			Immediately	$ 84.72
5	3370389		Screw, Shoulder (2)				$ 5.70
6	302819		Wheel (2)				$ 5.65
7	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
8	3374719		Plate, Latch		Appelez-nous	-
9	3374720		Screw				$ 28.23
10	WPW10509257		Gasket   (Replaces: 3376927)			Immediately	$ 74.12
11	WP3369322		Grate   (Replaces: 3369322)				$ 94.34
12	WP8528862		Deflector (2)   (Replaces: 3369052)				$ 63.90
13	WPW10082894		Heater   (Replaces: 3372523)				$ 134.78
14	WP717273		Washer, Rubber (2)   (Replaces: 717273)			Immediately	$ 7.19
15	3369073		Nut (2) (heater Terminal)		Appelez-nous	-
16	3374621		Water Valve				$ 79.23
17	WP489069		Screw 8-18 X 1/2   (Replaces: 304392)			Immediately	$ 7.86
18	3369421		Check, Valve Assembly		Appelez-nous	-
19	3369180		Hose, Coupler		Appelez-nous	-
21	WP596669		Clamp   (Replaces: 301958)			Immediately	$ 8.40
22	371499		Clamp				$ 12.95
23	WP489128		Screw   (Replaces: 3370225)				$ 10.88
24	W10102260		Relay   (Replaces: 3369063)				$ 143.07
25	WP304231		Screw, 8-18 X 1/2   (Replaces: 304231)			Immediately	$ 7.75
26	WP3368928		Fuse, Thermal   (Replaces: 3368928)			Immediately	$ 77.69
28	3373228		Spring, Door (2)				$ 24.53
29	3369048		Housing, Float Switch				$ 46.38
30	3369067		Switch, Float		Appelez-nous	-
31	3369049		Cover, Switch Housing		Appelez-nous	-
32	WP8519552		Float   (Replaces: 3369072)				$ 118.97
33	717488		Nut				$ 12.83
34	3368942		Toe, Panel		Appelez-nous	-
35	3374730		Access Panel & Clip Assembly				$ 68.75
36	WP302868		Screw, 8-18 X 1/2 (4)   (Replaces: 302868)			Immediately	$ 7.75
37	3369414		Hose, Inlet		Appelez-nous	-
38	WP3374077		Hose, Drain   (Replaces: 3368781)			Immediately	$ 102.23
39	3374718		Clip, Grounding		Appelez-nous	-
41	3370292		Box, Terminal		Appelez-nous	-
42	300068		Cover Assembly Terminal Box				$ 30.14
43	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
44	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.06
45	3368987		Support, Heater		Appelez-nous	-
46	WP250830		Screw, 8-32 X 1/2   (Replaces: 3371578)				$ 7.95
47	WP488130		Nut, 8-32   (Replaces: 3371579)				$ 6.97
48	3370307		Relief, Strain		Appelez-nous	-
49	3369138		Screw, 8-18				$ 5.81

    View Diagram in Separate Window       Print Part List
