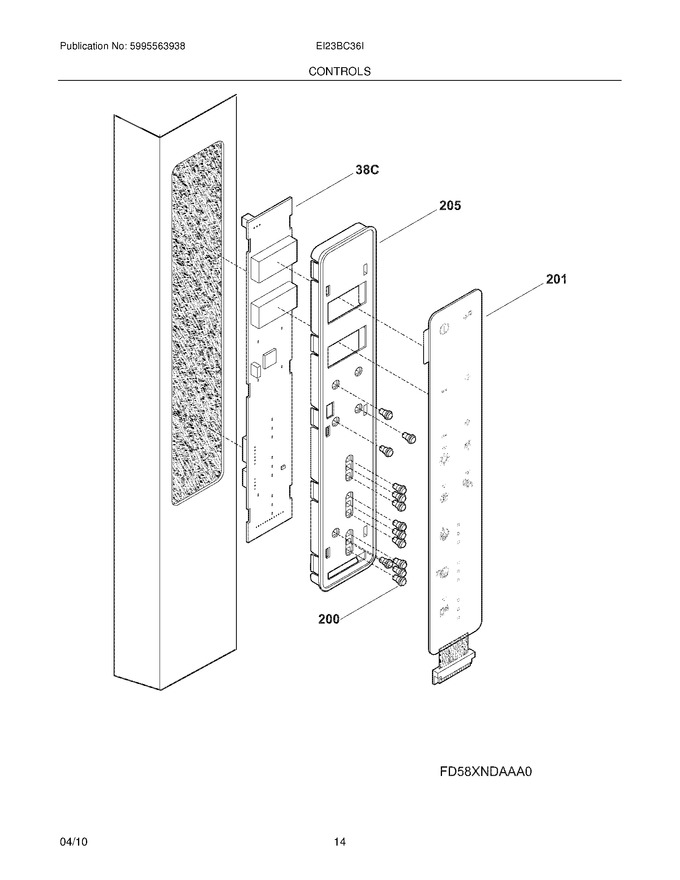

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 200 | 241609201 | Light Pipe |
|
$ 13.39 | |||||
| 201 | 242041201 | Switch-membrane |
|
$ 129.77 | |||||
| 205 | 242041401 | Housing,disp/controls |
|
$ 20.48 | |||||
| F38C | 242048301 | Board-control |
|
$ 161.70 | |||||
| NI | 241510904 | Harness-dispenser,grounding |
|
$ 67.73 | |||||
| NI | 241953902 | Screw,no.8 - 18 X .380 |
|
Immediately | $ 19.01 |
