View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

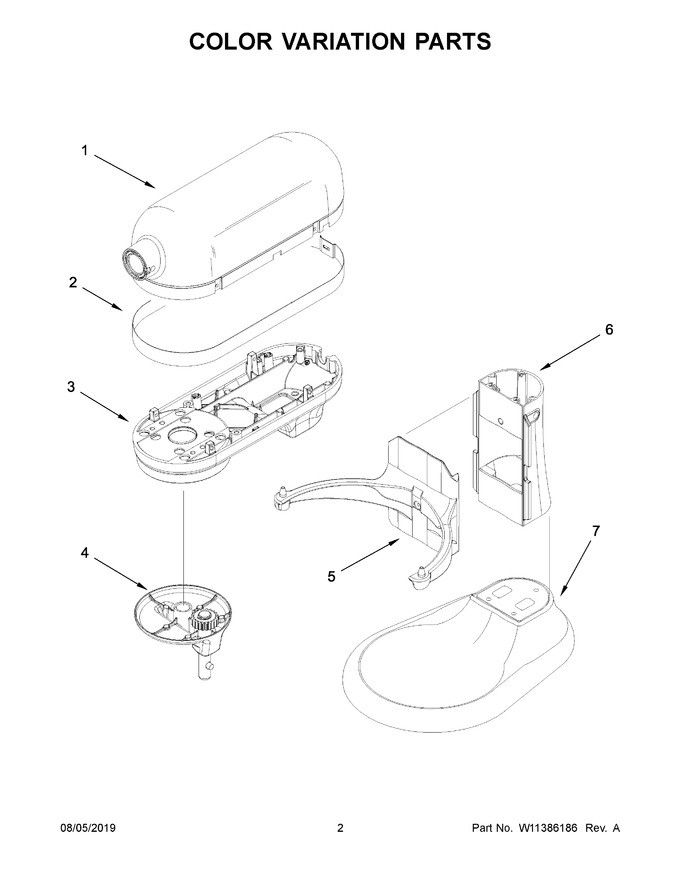

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9705300 | Motor Housing (empire Red) |
|
$ 88.20 | |||||
| 2 | W10668069 | Trim Band (dark Platinum) |
|
- | |||||
| 3 | W10410014 | Lower Gearcase (empire Red) |
|
$ 66.24 | |||||
| 4 | WPW10419426 | Planetary (empire Red) (Replaces: W10419426) |
|
$ 66.18 | |||||
| 5 | 9705360 | Bowl Support And Pins (empire Red) |
|
- | |||||
| 6 | WPW10451578 | Column And Pins (empire Red) (Replaces: W10451578) |
|
$ 98.88 | |||||
| 7 | 9705348 | Base & Foot Assembly (empire Red) |
|
- | |||||
| 1A | 9703311 | Motor Housing (white) |
|
$ 88.20 | |||||
| 3A | W10234489 | Lower Gearcase (white) |
|
- | |||||
| 4A | WPW10420628 | Planetary (white) (Replaces: W10234498) |
|
$ 64.21 | |||||
| 5A | 9703674 | Bowl Support And Pins (white) |
|
$ 74.91 | |||||
| 6A | W10451002 | Column And Pins (white) |
|
- | |||||
| 7A | 9703690 | Base & Foot Assembly (white) |
|
- |
